Product Summary

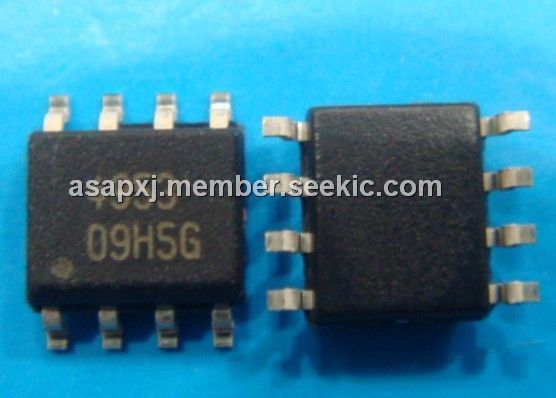

The CEM4953 is a dual P-channel enhancement mode field effect transistor.
Parametrics
CEM4953 absolute maxing ratings: (1)Drain-Source Voltage VDS: -30V; (2)Gate-Source Voltage VGS: ±20V; (3)Drain Current-Continuous ID: -4.9A; (4)Drain Current-Pulsed IDM: -30A; (5)Maximum Power Dissipation PD: 2.0W; (6)Operating and Store Temperature Range TJ,Tstg: -55 to 150℃.
Features
CEM4953 features: (1)-30V, -4.9A, RDS(ON) = 53mΩ @VGS = -10V; RDS(ON) = 95mΩ @VGS = -4.5V; (2)Super high dense cell design for extremely low RDS(ON); (3)High power and current handing capability; (4)Lead free product is acquired; (5)Surface mount Package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CEM4953 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CEM4953A |
Other |
|
Data Sheet |
Negotiable |
|
||||
