Product Summary
The CDCE913R05PWR is a modular PLL-based low-cost, high-performance, programmable clock synthesizer, multiplier, and divider. It generates up to 3 output clocks from a single input frequency. Each output can be programmed in-system for any clock frequency up to 230 MHz, using the integrated configurable PLL. The applications of the CDCE913R05PWR include: D-TV, STB, IP-STB, DVD-Player, DVD-Recorder, Printer.
Parametrics
CDCE913R05PWR absolute maxing ratings: (1)VDD Supply voltage range: –0.5 to 2.5 V; (2)VI Input voltage range: –0.5 to VDD + 0.5 V; (3)VO Output voltage range: –0.5 to VDD + 0.5 V; (4)II Input current (VI < 0, VI > VDD:) 20 mA; (5)IO Continuous output current 50 mA; (6)Tstg Storage temperature range: –65 to 150 ℃; (7)TJ Maximum junction temperature: 125 ℃.
Features
CDCE913R05PWR features: (1)Free Selectable Output Frequency up to 230 MHz; (2)Low-Noise PLL Core: PLL Loop Filter Components Integrated; Low Period Jitter (Typical 50 ps); (3)1.8-V Device Power Supply; (4)Separate Output Supply Pins: 3.3 V and 2.5 V; (5)Wide Temperature Range –40℃ to 85℃; (6)Packaged in TSSOP; (7)Development and Programming Kit for Easy PLL Design and Programming (TI Pro-Clock).

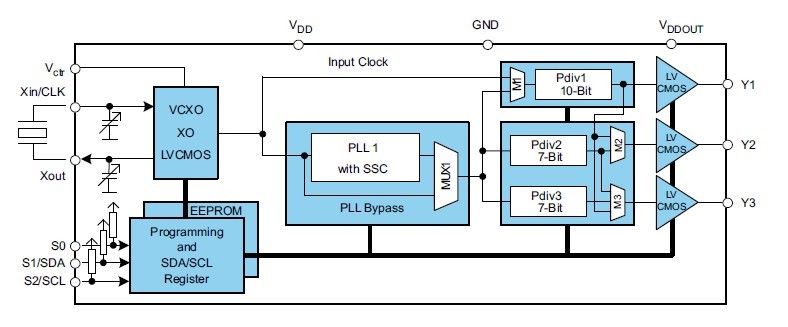

Diagrams
 |
