Product Summary
The CD40106BM96 Hex Schmitt Trigger is a monolithic complementary MOS (CMOS) integrated circuit constructed with N and P-channel enhancement transistors. The CD40106BM96 positive and negative-going threshold voltages, VT+ and VT-, show low variation with respect to temperature (typ 0.0005V/℃ at VDD = 10V), and hysteresis, VT+ - VT- ≥ 0.2 VDD is guaranteed. All inputs of CD40106BM96 are protected from damage due to static discharge by diode clamps to VDD and VSS.
Parametrics
CD40106BM96 absolute maximum ratings: (1)DC Supply Voltage (VDD): -0.5 to +18 VDC; (2)Input Voltage (VIN): -0.5 to VDD +0.5 VDC; (3)Storage Temperature Range (TS): -65℃ to +150℃; (4)Power Dissipation (PD): Dual-In-Line: 700 mW, Small Outline: 500 mW; (5)Lead Temperature (TL) (Soldering, 10 seconds): 260℃.
Features
CD40106BM96 features: (1)Wide supply voltage range: 3V to 15V; (2)High noise immunity: 0.7 VDD (typ.); (3)Low power TTL compatibility: Fan out of 2 driving 74L or 1 driving 74LS; (4)Hysteresis: 0.4 VDD (typ.), 0.2 VDD guaranteed; (5)Equivalent to MM74C14; (6)Equivalent to MC14584B.

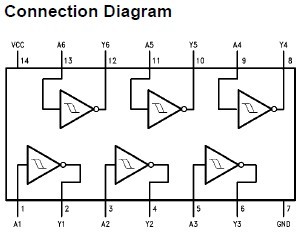

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CD40106BM96 |
Texas Instruments |
Inverters Hex Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
CD40106BM96E4 |
Texas Instruments |
Inverters Hex Schmitt Trigger |
Data Sheet |
|
|
||||||||||||
|
CD40106BM96G4 |
Texas Instruments |
Inverters CMOS Hex Schmitt Triggers |
Data Sheet |
|
|
||||||||||||
