Product Summary

The CD14538BM96 is a CMOS dual precision monostable multivibrator which provides stable retriggerable/resettable one-shot operation for any fixed-voltage timing application. An external resistor (Rx) and an external capacitor (Cx) control the timing and accuracy for the circuit. Adjustment of Rx and Cx provides a wide range of output pulse widths from the Q and Q terminals. The applications of the CD14538BM96 include: Pulse delay and timing, Pulse shaping.

Parametrics

CD14538BM96 absolute maximum ratings: (1)DC supply-voltage range(VDD)voltage referenced to VSS terminal: -0.5V to +20V; (2)Input voltage range, all inputs: -0.5V to VDD +0.5V; (3)DC input current, any one input: ±10mA; (4)Power dissipation per package(PD): for TA=-55℃ to 100℃: 500mW; for TA=+100℃ to +125℃: derate linearity at 12mW/℃ to 200mW; (5)Operating-temperature range(TA): -55℃ to +125℃; (6)Storage temperature range(Tstg): -65℃ to +150℃.

Features

CD14538BM96 features: (1)Retriggerable/resettable capability; (2)Trigger and reset propagation delays independent of fl,, Cx; (3)Triggering from leading or trailing edge; (4)Q and Q buffered outputs available; (5)Separate resets; (6)Replaces CD4538B Type.

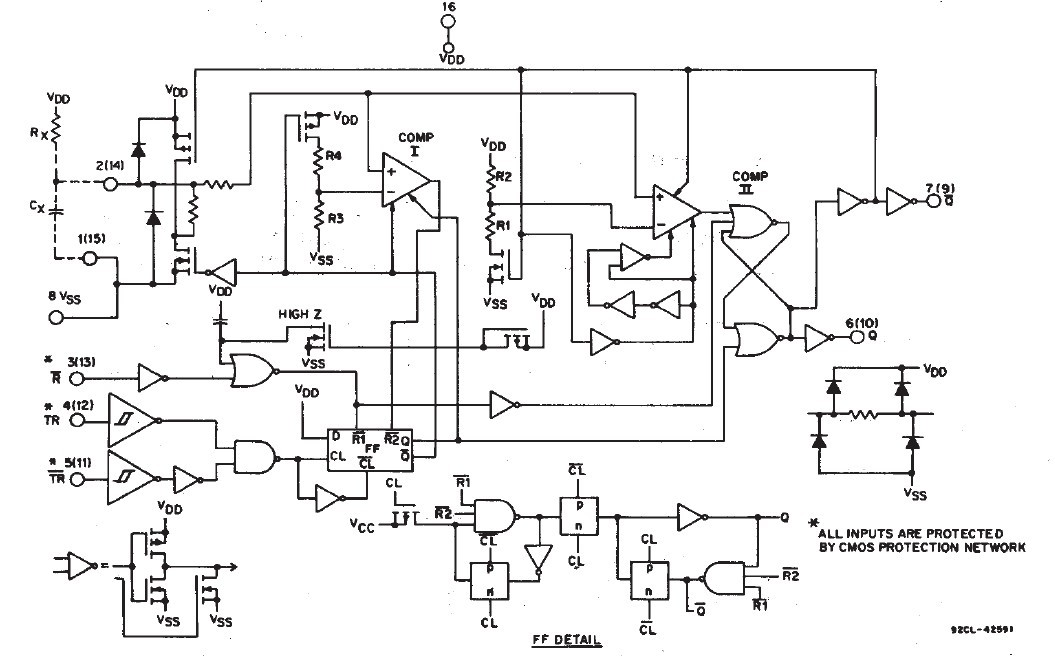

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CD14538BM96
CD14538BM96

Texas Instruments

Monostable Multivibrator CMOS Dual Precision Mono Multivibrator

Data Sheet

0-1: $0.31
1-25: $0.25
25-100: $0.20
100-250: $0.11
CD14538BM96E4
CD14538BM96E4

Texas Instruments

Monostable Multivibrator CMOS Dual Precision Mono Multivibrator

Data Sheet

0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.11
CD14538BM96G4
CD14538BM96G4

Texas Instruments

Monostable Multivibrator CMOS Dual Precision Mono Multivibrator

Data Sheet

0-1: $0.22
1-25: $0.18
25-100: $0.15
100-250: $0.11
