The C106M is a Reverse Blocking Thyristor. The C106M is designed for high volume consumer applications such as temperature, light, and speed control; process and remote control, and warning systems where reliability of operation is important.
Parametrics
C106M absolute maximum ratings: (1)On-State RMS Current (180°Conduction Angles, TC = 80℃), IT(RMS): 4.0 A; (2)Average On.State Current (180°Conduction Angles, TC = 80℃), IT(AV): 2.55 A; (3)Peak Non-Repetitive Surge Current (1/2 Cycle, Sine Wave, 60 Hz, TJ = +110℃), ITSM: 20 A; (4)Circuit Fusing Considerations (t = 8.3 ms), I2t: 1.65 A2s; (5)Forward Peak Gate Power (Pulse Width ≤1.0 μsec, TC = 80℃), PGM: 0.5 W; (6)Forward Average Gate Power (Pulse Width ≤1.0 μsec, TC = 80℃), PG(AV): 0.1 W; (7)Forward Peak Gate Current (Pulse Width ≤1.0 sec, TC = 80℃), IGM: 0.2 A; (8)Operating Junction Temperature Range, TJ: -40 to +110℃; (9)Storage Temperature Range, Tstg: -40 to +150℃; (10)Mounting Torque: -6.0 in. lb.
Features
C106M features: (1)Glassivated Surface for Reliability and Uniformity; (2)Power Rated at Economical Prices; (3)Practical Level Triggering and Holding Characteristics; (4)Flat, Rugged, Thermopad Construction for Low Thermal Resistance, High Heat Dissipation and Durability; (5)Sensitive Gate Triggering; (6)Pb-Free Packages are Available.

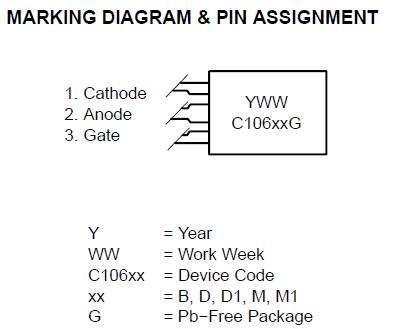

Diagrams
