Product Summary

The BLM18BB750 is an EMI Suppression Filter. It comprises ferrite beads in the shape of a chip. The BLM18BB750 is effective in circuits without stable ground lines because the device does not need a connection to ground.

Parametrics

BLM18BB750 general specifications: (1)impedamce: at 100MHz:75Ω±25%; (2)rated current:300mA.

Features

BLM18BB750 feature: (1)the device can minimize attenuation of the signal waveform due to its sharp impedance characteristics. Various impedances are available to match signal frequency.

Diagrams

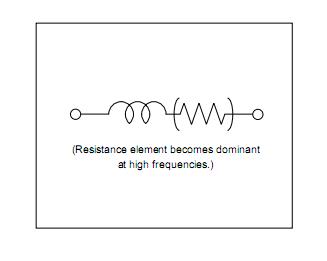

BLM18BB750 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

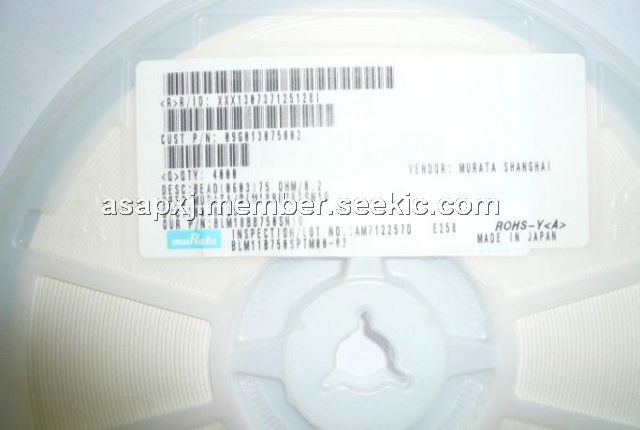

BLM18BB750SH1D
BLM18BB750SH1D
Murata
EMI Filter Beads, Chokes & Arrays 0603 75ohms HiSpeed Signal Line Tape
Data Sheet
0-1: $0.15
1-50: $0.09
50-100: $0.07
100-500: $0.04
BLM18BB750SN1D
BLM18BB750SN1D
Murata
EMI Filter Beads, Chokes & Arrays 0603 75 OHM
Data Sheet
0-1: $0.12
1-50: $0.08
50-100: $0.07
100-500: $0.04
