Product Summary

The BH1750FVI is a digital Ambient Light Sensor IC for I C bus interface. This IC is the most suitable to obtain the ambient light data for adjusting LCD and Keypad backlight power of Mobile phone. The BH1750FVI is possible to detect wide range at High resolution.

Parametrics

BH1750FVI absolute maximum ratings: (1)Supply Voltage, Vmax: 4.5 V; (2)Operating Temperature, Topr: -40 to 85℃; (3)Storage Temperature, Tstg: -40 to 100℃; (4)SDA Sink Current, Imax: 7mA; (5)Power Dissipation, Pd: 260 mW.

Features

BH1750FVI features: (1)I2C bus Interface ( f/s Mode Support); (2)Spectral responsibility is approximately human eye response; (3)Illuminance to Digital Converter; (4)Wide range and High resolution; (5)Low Current by power down function; (6)50Hz / 60Hz Light noise reject-function; (7)1.8V Logic input interface; (8)No need any external parts; (9)Light source dependency is little; (10)It is possible to select 2 type of I2C slave-address; (11)Adjustable measurement result for influence of optical window; (12)Small measurement variation (+/- 20%); (13)The influence of infrared is very small.

Diagrams

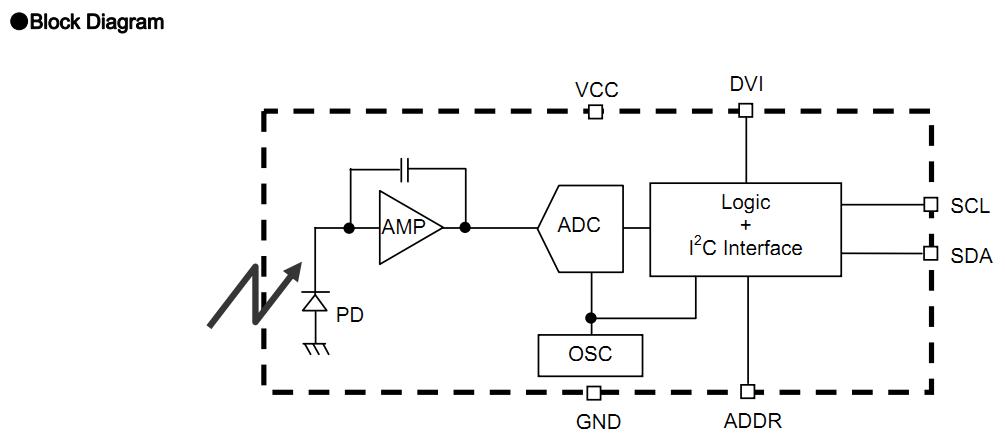

BH1750FVI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BH1750FVI-TR
BH1750FVI-TR
ROHM Semiconductor
Ambient Light Sensors Ambient Light Sensor Digital 16bit Serial
Data Sheet
0-1: $2.66
1-25: $2.12
25-100: $1.58
100-250: $1.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BH1710FVC-TR
BH1710FVC-TR
ROHM Semiconductor
Ambient Light Sensors Ambient Light Sensor 16bit Serial Output
Data Sheet
0-1: $1.55
1-25: $1.24
25-100: $1.03
100-250: $0.98
BH1715FVC-TR
BH1715FVC-TR
ROHM Semiconductor
Ambient Light Sensors Ambient Light Sensor Digital 16Bit Serial
Data Sheet
0-1: $2.10
1-25: $1.68
25-100: $1.26
100-250: $1.20
BH1721FVC-TR
BH1721FVC-TR
ROHM Semiconductor
Ambient Light Sensors Ambient Light Sensor Digital 16bit Serial
Data Sheet
0-1: $1.43
1-25: $1.15
25-100: $0.89
100-250: $0.85
BH1750FVI-TR
BH1750FVI-TR
ROHM Semiconductor
Ambient Light Sensors Ambient Light Sensor Digital 16bit Serial
Data Sheet
0-1: $2.66
1-25: $2.12
25-100: $1.58
100-250: $1.54
BH1751FVI-TR
BH1751FVI-TR

IC AMBIENT LIGHT SENSOR 6WSOF
Data Sheet
0-1: $2.01
1-25: $1.55
25-100: $1.41
100-250: $1.26
250-500: $1.09
500-1000: $0.92
BH1771GLC-E2
BH1771GLC-E2

IC PROX SENSOR AMBIENT LT 10WLGA
Data Sheet
0-3000: $1.46
