Product Summary

The BD436 is a silicon epitaxial-base NPN power transistor in Jedec SOT-32 plastic package. The device is intented for use in medium power linear and switching applications.

Parametrics

BD436 absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 32V; (2)VCES, Collector-Emitter Voltage (VBE = 0): 32V; (3)VCEO, Collector-Emitter Voltage (IB = 0): 32V; (4)VEBO, Emitter-Base Voltage (IC = 0): 5 V; (5)IC, Collector Current: 4 A; (6)ICM, Collector Peak Current (t≤10 ms): 7 A; (7)IB, Base Current: 1 A; (8)Ptot, Total Dissipation at Tc≤25℃: 36 W; (9)Tstg, Storage Temperature: -65 to 150℃; (10)Tj, Max. Operating Junction Temperature: 150℃.

Features

BD436 features: (1)STMicroelectronics preferred salestype; (2)complementary PNP - NPN devices.

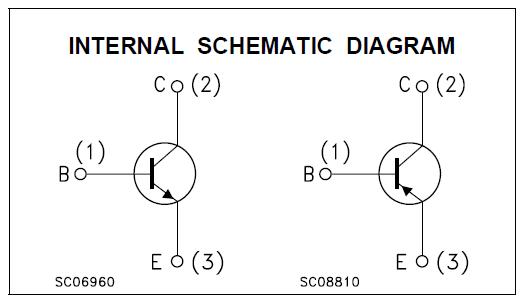

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BD436
BD436
STMicroelectronics
Transistors Bipolar (BJT) PNP Medium Power
Data Sheet
Negotiable
BD436G
BD436G
ON Semiconductor
Transistors Bipolar (BJT) 4A 32V 36W PNP
Data Sheet
Negotiable
BD436S
BD436S
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP Epitaxial Sil
Data Sheet
0-1: $0.30
1-25: $0.27
25-100: $0.24
100-250: $0.16
BD436STU
BD436STU
Fairchild Semiconductor
Transistors Bipolar (BJT) PNP Epitaxial Sil
Data Sheet
0-1: $0.33
1-25: $0.22
25-100: $0.19
100-250: $0.17
BD436T
BD436T
ON Semiconductor
Transistors Bipolar (BJT) 4A 32V 36W PNP
Data Sheet
Negotiable
BD436TG
BD436TG
ON Semiconductor
Transistors Bipolar (BJT) 4A 32V 36W PNP
Data Sheet
0-1: $0.38
1-25: $0.29
25-100: $0.26
100-500: $0.19
