Product Summary

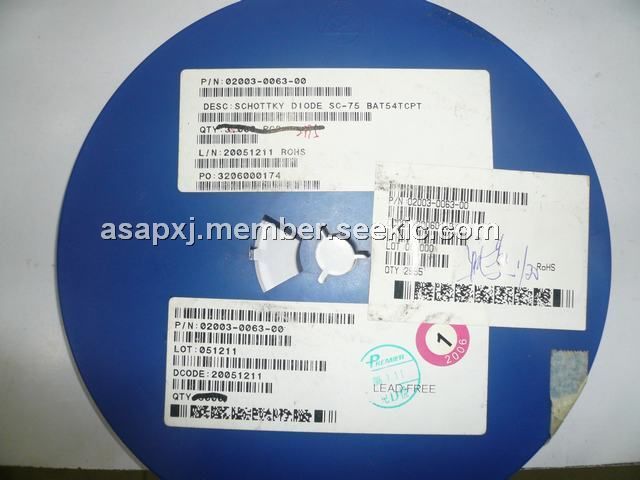

The BAT54TC is a schottky barrier diode. The applications of it are PSU, Mobile Telecomms & SCSI.
Parametrics
BAT54TC absolute maximum ratings: (1)Continuous Reverse Voltage:30 V; (2)Forward Current:200 mA; (3)Forward Voltage @ IF =10mA:400 mV; (4)Repetitive Peak Forward Current:300 mA; (5)Non Repetitive Forward Current:600 mA; (6)Power Dissipation:330 mW; (7)Storage Temperature Range:-55℃ to +150℃; (8)JunctionTemperature:125℃.
Features
BAT54TC features: (1)Low VF; (2)High Current Capability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BAT54TC |
Diodes Inc. / Zetex |
Schottky (Diodes & Rectifiers) Single 40V 200mA |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
BAT54-02V-V-G-08 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) SCHOTTKY, 30V, SOD-523 |
Data Sheet |
|
|
||||||||||||
 |
BAT54A-V-GS18 |
Vishay Semiconductors |
Schottky (Diodes & Rectifiers) 30 Volt 200mA Dual Common Anode |
Data Sheet |
|
|
||||||||||||
 |
BAT54BRW-T |
Micro Commercial Components (MCC) |
Schottky (Diodes & Rectifiers) 200mA 30V |
Data Sheet |
Negotiable |
|
||||||||||||
 |
BAT54AT |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT54A-V |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
BAT54BRW |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
