The BAT54S is a schottky diode.
Parametrics
BAT54S absolute maximum ratings: (1)VRRM Maximum Repetitive Reverse Voltage: 30 V; (2)IF(AV) Average Rectified Forward Current: 200 mA; (3)IFSM Non-repetitive Peak Forward Surge Current; (4)Pulse Width = 1.0 second: 600 mA; (5)TSTG Storage Temperature Range: -55 to +150℃; (6)TJ Operating Junction Temperature: -55 to +150℃.
Features
BAT54S absolute maximum ratings: (1)VR Breakdown Voltage IR = 10μA: 30 V; (2)VF Forward Voltage IF = 0.1mA: 240mV; (3)IR Reverse Leakage VR = 25V: 2 μA; (4)CT Total Capacitance VR = 1V, f = 1.0MHz: 10 pF; (5)trr Reverse Recovery Time IF = IR = 10mA, IRR = 1.0mA, RL = 100Ω: 5.0 ns.

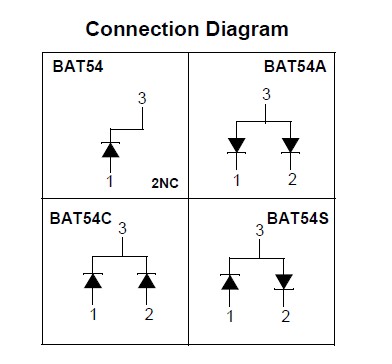

Diagrams
