Product Summary
The BA5814FM-E2 is a 5ch BTL driver for CD applications. It is used in CD.
Parametrics
BA5814FM-E2 absolute maximum ratings: (1)Power supply voltage VCC: 13.5V; (2)Power dissipation Pd: 2.2 W; (3)Operating temperature range Topr: -40 to 85 ℃; (4)Storage temperature range Tstg: -55 to 150 ℃.
Features

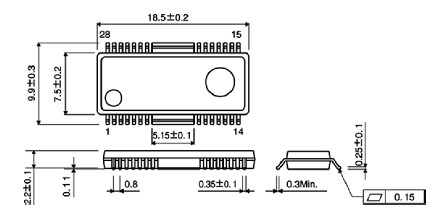

BA5814FM-E2 features: (1)Small surface mounting power package HSOP-M28; (2)Internal thermal shut down circuit; (3)Wide dynamic range; (4)Built-in variable 2 channel regulator(External PNPTr is necessary.).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BA5814FM-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers DC/DC CONV4-35V 5PIN |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
BA5813FM-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers CD/CD-ROM DRIVER |
Data Sheet |
|
|
||||||
|
BA5814FM-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers DC/DC CONV4-35V 5PIN |
Data Sheet |
|
|
||||||
 |
BA5815FM-E2 |
|
IC PWR DRVR CD/DVD HSOP-M28 TR |
Data Sheet |
|
|
||||||
|
BA5826FP-E2 |
ROHM Semiconductor |
Motor / Motion / Ignition Controllers & Drivers POWER DRIVER 28-PIN |
Data Sheet |
|
|
||||||
|
BA5830FM-E2 |
|
IC DVR MOTOR 4CH 28HSOP |
Data Sheet |
|
|
||||||
|
BA5830FP-E2 |
|
IC DRIVER MOTOR 4CH HSOP-M28 |
Data Sheet |
|
|
||||||
