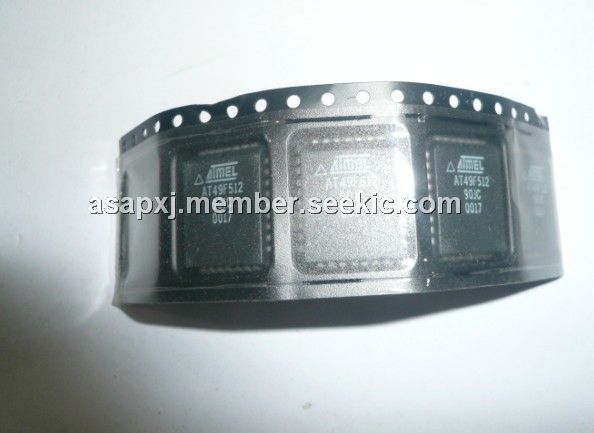

AT49F512

5-volt-only, in-system programmable, erasable Flash Memory, PLCC, -0.6V to +13.5V, Low Power Dissipation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.00~5.00

PartNumber:: AT49F512

Brand:: ATMEL Corporation - ATMEL | Pack: PLCC | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-28

From Other Seller

Part Number:AT49F512
US $0.00 - 5.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
QM75DY-H

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

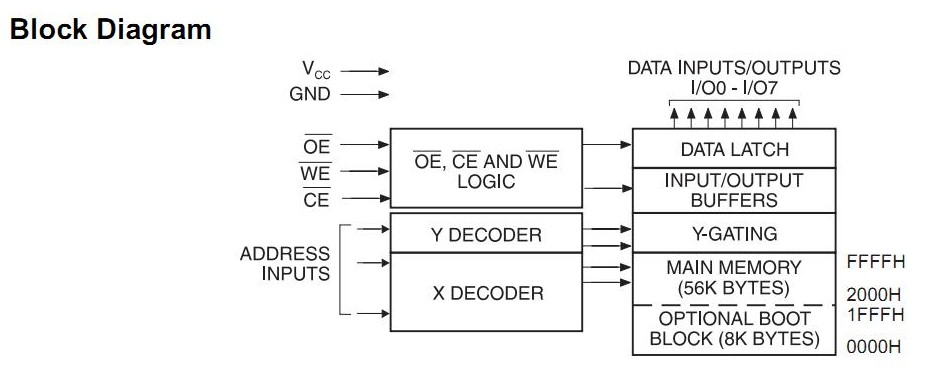

The AT49F512 is a 5-volt-only in-system programmable and erasable Flash Memory. Its 512K of memory is organized as 65,536 words by 8 bits. Manufactured with advanced nonvolatile CMOS technology, the AT49F512 offers access times to 70ns with a power dissipation of just 165 mW over the commercial temperature range. When the AT49F512 is deselected, the CMOS standby current is less than 100 μA. To allow for simple in-system reprogrammability, the AT49F512 does not require high input voltages for programming. Five-volt-only commands determine the read and programming operation of the device.

Parametrics

AT49F512 absolute maximum ratings: (1)Temperature Under Bias: -55 to +125℃; (2)Storage Temperature: -65 to +150℃; (3)All Input Voltages (including NC pins) with Respect to Ground: -0.6V to +6.25V; (4)All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5)Voltage on OE with Respect to Ground: -0.6V to +13.5V.

Features

AT49F512 features: (1)Single Voltage Operation: 5V Read; 5V Reprogramming; (2)Fast Read Access Time - 70 ns; (3)Internal Program Control and Timer; (4)8K bytes Boot Block With Lockout; (5)Fast Erase Cycle Time - 10 seconds; (6)Byte By Byte Programming - 10 μ μ μ μs/Byte; (7)Hardware Data Protection; (8)DATA Polling For End Of Program Detection; (9)Low Power Dissipation: 30 mA Active Current; 100μA CMOS Standby Current; (10)Typical 10,000 Write Cycles.
