Product Summary

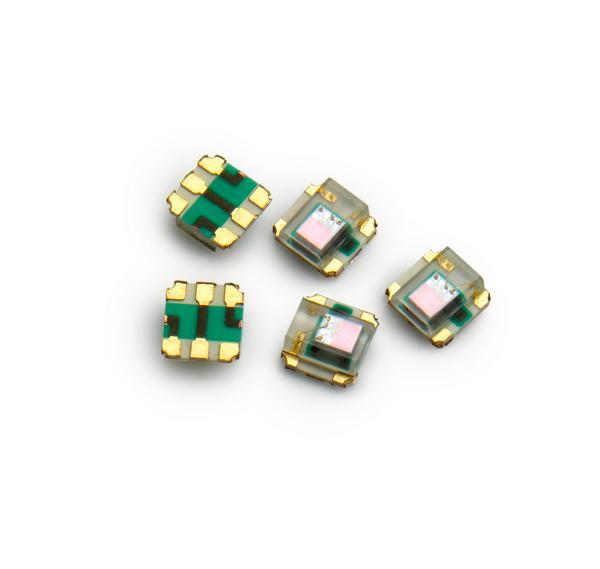

The APDS-9005-020 is a low cost analog-output ambient light photo sensor in miniature chipLED lead-free surface mount package. It consists of a photo sensor, whose spectral response is close to the CIE standard photopic observer. The APDS-9005-020 is ideal for applications in which the measurement of ambient light is used to control display backlighting. Mobile applianc­es such as the mobile phones and PDAs that draw heavy current from display backlighting will benefit from incor­porating these photo sensor products in their designs by reducing power consumption significantly.

Parametrics

APDS-9005-020 absolute maximum ratings: (1)Storage Temperature TS: -40 to 85 ℃; (2)Operating temperature TA: -40 to 85 ℃; (3)Supply Voltage VCC: 0 to 6 V; (4)Photo Current (II)I_PH2: 44uA; (5)Rise Time Tr: 5ms.


Features

APDS-9005-020 features: (1)Spectral responsivity close to that of human eye; (2)Miniature ChipLED Leadfree surface-mount package; (3)Low sensitivity variation across various light sources; (4)Recommended operating temperature : -40℃ to 85℃; (5)Vcc supply 1.8 to 5.5V; (6)Lead-free package, RoHS compliance; (7)Output linearity across wide illumination range.

Diagrams

APDS-9005-020 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APDS-9005-020
APDS-9005-020

Avago Technologies

Ambient Light Sensors Ambient Light sensor

Data Sheet

0-1: $0.77
1-25: $0.58
25-100: $0.50
100-250: $0.48
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
APDS-9002
APDS-9002

Other


Data Sheet

Negotiable
APDS-9002-001
APDS-9002-001

Avago Technologies

Ambient Light Sensors Ambient Light sensor

Data Sheet

Negotiable
APDS-9002-021
APDS-9002-021

Avago Technologies

Ambient Light Sensors Ambient Light sensor

Data Sheet

0-1: $0.78
1-25: $0.35
25-100: $0.31
100-250: $0.29
APDS-9003
APDS-9003

Other


Data Sheet

Negotiable
APDS-9003-020
APDS-9003-020

Avago Technologies

Ambient Light Sensors Ambient Light sensor

Data Sheet

0-1: $0.72
1-25: $0.56
25-100: $0.47
100-250: $0.45
APDS-9003-022
APDS-9003-022

Avago Technologies

Ambient Light Sensors Ambient Light sensor

Data Sheet

0-1550: $0.30
1550-2000: $0.26
2000-2500: $0.26
2500-5000: $0.26
