Product Summary
The AK8130C-E2 is a Low Power Multiclock Generator with VCXO. It is designed for a feature rich DTV or STB, requiring a range of system clocks with high performance. The AK8130C-E2 generates different frequency clocks from a 27MHz crystal oscillator and provides them to up to four outputs configured by pin-setting. The on-chip VCXO accepts a voltage control input to allow the output clocks to vary by ±110 ppm for synchronizing to the external clock system. The applications of the AK8130C-E2 include: Digital TV Sets, Personal Video Recorders, Set-Top-Boxes, Multi Media Receivers.
Parametrics
AK8130C-E2 absolute maximum ratings: (1)Supply voltage VDD: -0.3 to 4.6 V; (2)Input voltage Vin: VSS-0.3 to VDD+0.3 V; (3)Input current (any pins except supplies) IIN: ±10 mA; (4)Storage temperature Tstg: -55 to 130 ℃.
Features
AK8130C-E2 features: (1)27MHz Crystal Input; (2)Four Frequency-Selectable Clock Outputs; (3)One 27MHz-Reference Output; (4)Built-in VCXO Pull Range: ±110ppm (Min.); (5)Low Jitter Performance Period Jitter: 150 psec (Typ.) at CLK1-4, Long Term Jitter: 160 psec (Typ.) at REFOUT; (6)Low Current Consumption: 16.5mA (Typ.) at 3.3V; (7)Supply Voltage: 3.0 – 3.6V; (8)Operating Temperature Range: -20 to +85℃; (9)Package: 16-pin TSSOP (Lead free).

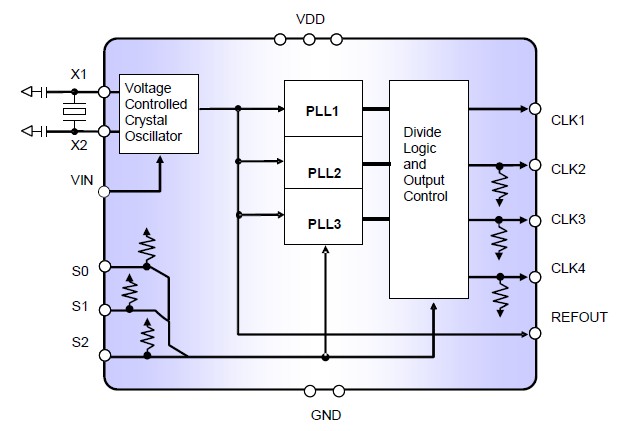

Diagrams
