Product Summary

The AIC1732-33CX is a 3-pin low dropout linear regulator. The superior characteristics of the AIC1732-33CX include zero base current loss, very low dropout voltage, and 2% accuracy output voltage. Typical ground current of the AIC1732-33CX remains approximately 55mA, from no load to maximum loading conditions. Dropout voltage at 100mA output current is exceptionally low.

Parametrics

AIC1732-33CX absolute maximum ratings: (1)Input Supply Voltage: -0.3~12V; (2)Operating Junction Temperature Range: -40℃~ 125℃; (3)Storage Temperature Range: -65℃~150℃; (4)Power Dissipation SOT-89 Package: 0.5W.

Features

AIC1732-33CX features: (1)Low Dropout Voltage of 130mV at 100mA Output Current (5.2V Output Version); (2)Guaranteed 300mA Output Current; (3)Interna1.3W P-MOSFET Draws no Base Current; (4)Low Ground Current at 55mA; (5)2% Accuracy Output Voltage of 3.3V/ 3.4V/3.5V/ 3.6V/ 3.7V/ 3.8V/ 5.0V/ 5.2V; (6)Input Voltage Range up to 12V; (7)Needs only 1mF for Stability; (8)Current and ThermaLimiting.

Diagrams

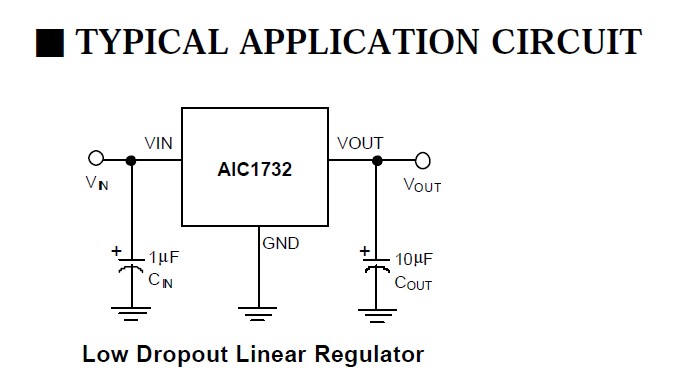

AIC1732-33CX typical application circuit
