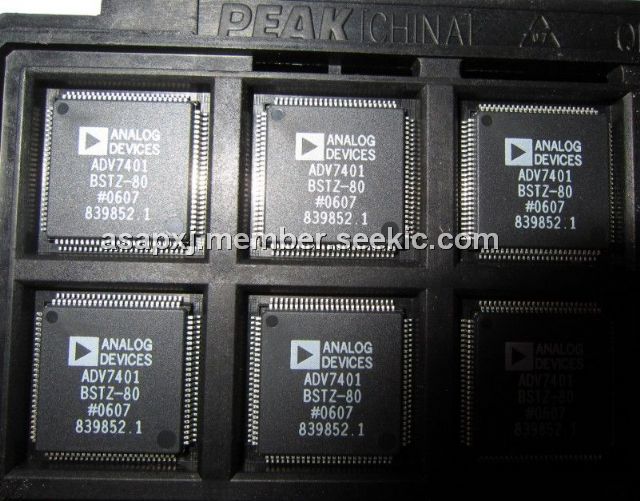

Product Summary
The ADV7401BSTZ-80 is a 10-Bit, Integrated, Multiformat SDTV/HDTV Video Decoder and RGB Graphics Digitizer. This multiformat decoder supports the conversion of PAL, NTSC, and SECAM standards in the form of composite or S-video into a digital ITU-R BT.656 format. The ADV7401BSTZ-80 also supports the decoding of a component RGB/YPrPb video signal into a digital YCrCb or RGB pixel output stream. The applications of the ADV7401BSTZ-80 include: LCD/DLP rear projection HDTVs, PDP HDTVs, CRT HDTVs, LCD/DLP front projectors, LCD TV (HDTV ready), HDTV STBs with PVR, Hard-disk-based video recorders, Multiformat scan converters, DVD recorders with progressive scan input support, AVR receiver.
Parametrics
ADV7401BSTZ-80 absolute maximum ratings: (1)AVDD to AGND: 4 V; (2)DVDD to DGND: 2.2 V; (3)PVDD to AGND: 2.2 V; (4)DVDDIO to DGND: 4 V; (5)DVDDIO to AVDD: -0.3 V to +0.3 V; (6)PVDD to DVDD: -0.3 V to +0.3 V; (7)DVDDIO to PVDD: -0.3 V to +2 V; (8)DVDDIO to DVDD: -0.3 V to +2 V; (9)AVDD to PVDD: -0.3 V to +2 V; (10)AVDD to DVDD: -0.3 V to +2 V; (11)Digital Inputs Voltage to DGND: DGND - 0.3 V to DVDDIO + 0.3 V; (12)Digital Outputs Voltage to DGND: DGND - 0.3 V to DVDDIO + 0.3 V; (13)Analog Inputs to AGND: AGND - 0.3 V to AVDD + 0.3 V; (14)Maximum Junction Temperature (TJ MAX): 125℃; (15)Storage Temperature Range: -65℃ to +150℃; (16)Infrared Reflow Soldering (20 sec): 260℃.
Features
ADV7401BSTZ-80 features: (1)Four 10-bit ADCs sampling up to 140 MHz (140 MHz speed grade only); (2)12 analog input channel mux; (3)SCART fast blank support; (4)Internal antialias filters; (5)NTSC/PAL/SECAM color standards support; (6)525p-/625p-component progressive scan support; (7)720p-/1080i-component HDTV support; (8)Digitizes RGB graphics up to 1280 × 1024 @ 75 Hz (SXGA) (140 MHz speed grade only); (9)24-bit digital input port supports data from DVI/HDMI Rx IC; (10)Any-to-any, 3 × 3 color-space conversion matrix; (11)Industrial temperature range (-40℃ to +85℃); (12)12-bit 4:4:4/8-bit 4:2:2 DDR pixel output interface; (13)Programmable interrupt request output pin; (14)VBI data slicer (including teletext).

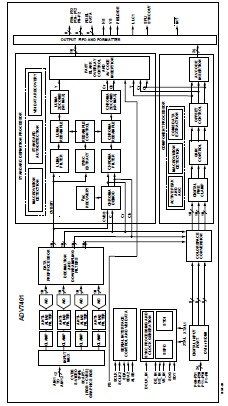

Diagrams
