ADS7843E/2K5G4

sampling analog-to-digital converter, 2.7V to 5V, 250mW, 16-QSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.87~0.88 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.87~0.88

PartNumber:: ADS7843E/2K5G4

Brand:: Texas Instruments - TI | Pack: QSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-13

From Other Seller

Part Number:ADS7843E/2K5G4
US $0.87 - 0.88
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

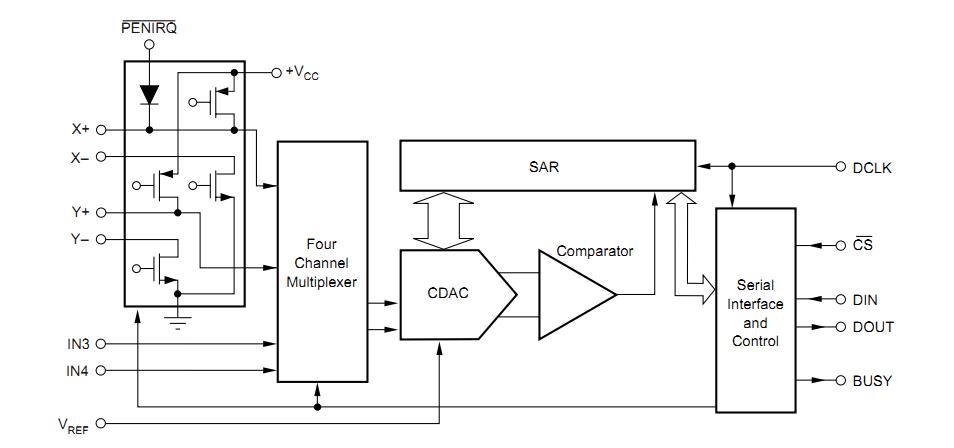

The ADS7843E/2K5G4 is a 12-bit sampling analog-to-digital converter (ADC) with a synchronous serial interface and low on-resistance switches for driving touch screens. Typical power dissipation is 750μW at a 125kHz throughput rate and a +2.7V supply. The reference voltage (VREF) can be varied between 1V and +VCC, providing a corresponding input voltage range of 0V to VREF. The ADS7843E/2K5G4 includes a shutdown mode which reduces typical power dissipation to under 0.5μW. The device is guaranteed down to 2.7V operation. The applications of the ADS7843E/2K5G4 inlcude personal digital assistants, portable instruments, point-of-sales terminals, pagers and touch-screen monitors.

Parametrics

ADS7843E/2K5G4 absolute maximum ratings: (1)+VCC to GND: –0.3V to +6V; (2)Analog Inputs to GND:–0.3V to +VCC + 0.3V; (3)Digital Inputs to GND: –0.3V to +VCC + 0.3V; (4)Power Dissipation: 250mW; (5)Maximum Junction Temperature: +150℃; (6)Operating Temperature Range: –40 to +85℃; (7)Storage Temperature Range: –65 to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

ADS7843E/2K5G4 features: (1)4-wire touch screen interface; (2)ratiometric conversion; (3)single supply: 2.7V to 5V; (4)up to 125kHz conversion rate; (5)serial interface; (6)programmable 8- or 12-bit resolution; (7)2 auxiliary analog inputs; (8)full power-down control.
