Product Summary

The ADG441BR is a monolithic CMOS device comprising four independently selectable switches. The device is designed on an enhanced LC2MOS process that provides low power dissipation yet gives high switching speed and low on resistance. The on resistance profile is very flat over the full analog input range ensuring good linearity and low distortion when switching audio signals. High switching speed also makes the parts suitable for video signal switching. The applications of the ADG441BR include Audio and Video Switching, Automatic Test Equipment, Precision Data Acquisition, Battery Powered Systems, Sample Hold Systems, Communication Systems.

Parametrics

ADG441BR absolute maximum ratings: (1)VDD to VSS: +44 V; (2)VDD to GND: -0.3 V to +25 V; (3)VSS to GND: +0.3 V to -25 V; (4)VL to GND: -0.3 V to VDD + 0.3 V; (5)Analog, Digital Inputs2: VSS -2 V to VDD + 2 V or 30 mA, Whichever Occurs First; (6)Continuous Current, S or D: 30 mA; (7)Peak Current, S or D: 100 mA (Pulsed at 1 ms, 10% Duty Cycle Max); (8)Operating Temperature Range; (9)Industrial (B Version): -40℃ to +85℃; (10)Extended (T Version): -55℃ to +125℃; (11)Storage Temperature Range: -65℃ to +150℃; (12)Junction Temperature: +150℃; (13)Cerdip Package, Power Dissipation: 900 mW.

Features

ADG441BR features: (1)44 V Supply Maximum Ratings; (2)VSS to VDD Analog Signal Range; (3)Low On Resistance (< 70Ω); (4)Low DRON (9 W max); (5)Low RON Match (3 W max); (6)Low Power Dissipation; (7)Fast Switching Times, tON < 110 ns; tOFF < 60 ns; (8)Low Leakage Currents ( 3 nA max); (9)Low Charge Injection (6 pC max); (10)Break-Before-Make Switching Action; (11)Latch-Up Proof; (12)Plug-In Upgrade for DG201A/ADG201A, DG202A/ADG202A, DG211/ADG211A; (13)Plug in Replacement for DG441/DG442/DG444.

Diagrams

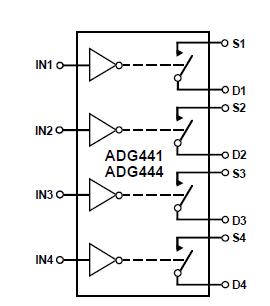

ADG441BR circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADG441BR
ADG441BR

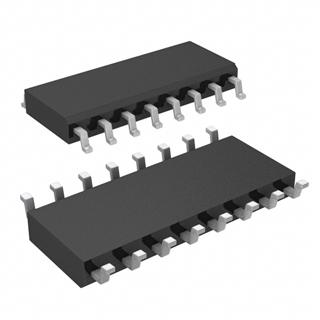

IC SWITCH QUAD SPST 16SOIC
