Product Summary

The AD9884AKS-140 is an Analog Flat Panel Interface. It is optimized for capturing RGB graphics signals from personal computers and workstations. The AD9884AKS-140’ 140 MSPS encode rate capability and full-power analog bandwidth of 500 MHz supports display resolutions of up to 1280 × 1024 (SXGA) at 75 Hz with sufficient input bandwidth to accurately acquire and digitize each pixel. To minimize system cost and power dissipation, the AD9884AKS-140 includes an internal +1.25 V reference, PLL to generate a pixel clock from HSYNC, and programmable gain, offset and clamp circuits. The applications of the AD9884AKS-140 include: RGB Graphics Processing, LCD Monitors and Projectors, Plasma Display Panels, Scan Converters.

Parametrics

AD9884AKS-140 absolute maximum ratings: (1)VD, PVD: –0.5 V to +4 V; (2)PVD to VD: ±0.5 V; (3)VDD: –0.5 V to +4 V; (4)Analog Inputs: VD to –0.5 V; (5)REFIN: VD to 0.0 V; (6)Digital Inputs: VD to 0.0 V; (7)Digital Output Current: 20 mA; (8)Operating Temperature: –20℃ to +85℃; (9)Storage Temperature: –65℃ to +150℃; (10)Maximum Junction Temperature: +175℃; (11)Maximum Case Temperature: +150℃.

Features

AD9884AKS-140 features: (1)140 MSPS Maximum Conversion Rate; (2)500 MHz Analog Bandwidth; (3)0.5 V to 1.0 V Analog Input Range; (4)400 ps p-p PLL Clock Jitter; (5)Power-Down Mode; (6)3.3 V Power Supply; (7)2.5 V to 3.3 V Three-State CMOS Outputs; (8)Demultiplexed Output Ports; (9)Data Clock Output Provided; (10)Low Power: 570 mW Typical; (11)Internal PLL Generates CLOCK from HSYNC; (12)Serial Port Interface; (13)Fully Programmable; (14)Supports Alternate Pixel Sampling for Higher-Resolution Applications.

Diagrams

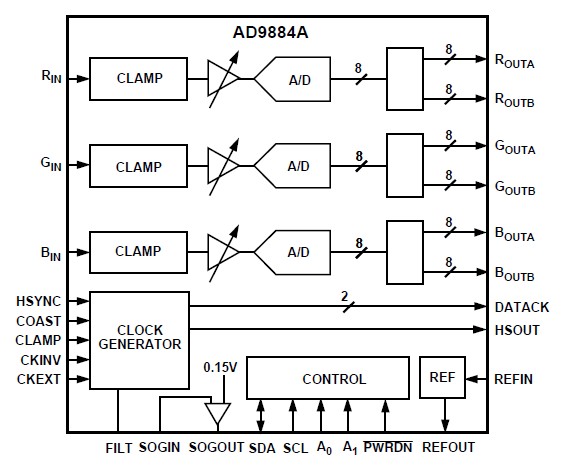

AD9884AKS-140 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

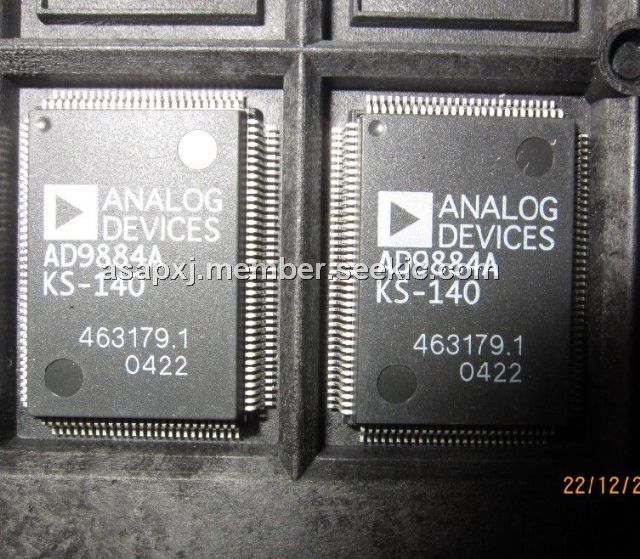

AD9884AKS-140
AD9884AKS-140

Analog Devices Inc

IC ANALOG INTRFC 140MSPS 128MQFP

Data Sheet

Negotiable
