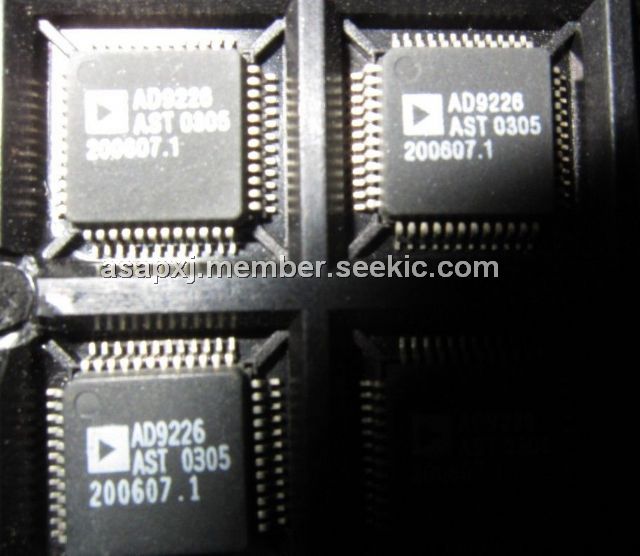

AD9226AST

AD, Complete 12-Bit, 65 MSPS ADC Converter, 48-Lead LQFP, -0.3V to 6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.30~6.34 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.30~6.34

PartNumber:: AD9226AST

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-21

From Other Seller

Part Number:AD9226AST
US $6.30 - 6.34
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

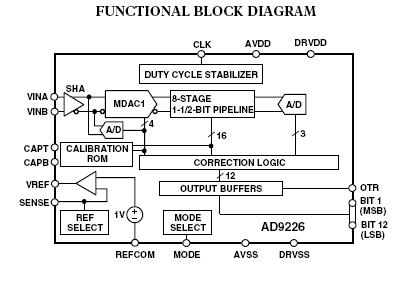

The AD9226AST is a monolithic, single-supply, 12-bit, 65 MSPS analog-to-digital converter with an on-chip, high-performance sample-and-hold amplifier and voltage reference. The AD9226AST uses a multistage differential pipelined architecture with a patented input stage and output error correction logic to provide 12-bit accuracy at 65 MSPS data rates. There are no missing codes over the full operating temperature range (guaranteed).The input of the AD9226AST allows for easy interfacing to both imaging and communications systems.

Parametrics

AD9226AST absolute maximum ratings: (1)AVDD:-0.3 to +6.5V; (2)DRVDD:-0.3 to +6.5V; (3)AVSS:-0.3 to +0.3V; (4)AVDD:-6.5V to +6.5V; (5)REFCOM:-0.3V to +0.3V; (6)CLK,MODE:-0.3 to AVDD+0.3V; (7)Digital Outputs:–0.3 to DRVDD + 0.3 V; (8)VINA, VINB:–0.3V to AVDD + 0.3 V; (9)VREF:–0.3V to AVDD + 0.3 V; (10)SENSE:–0.3V to AVDD + 0.3 V; (11)CAPB,CAPT:–0.3V to AVDD + 0.3 V; (12)OEB2:–0.3V to DRVDD + 0.3 V; (13)CM LEVEL2:–0.3V to AVDD + 0.3 V; (14)VR2:–0.3V to AVDD + 0.3 V; (15)Junction Temperature:150℃; (16)Storage Temperature:–65℃ to +150℃; (17)Lead Temperature (10 sec):300℃.

Features

AD9226AST features: (1)Signal-to-Noise Ratio: 69dB@fIN=31MHz; (2) Spurious-Free Dynamic Range: 85 dB @ fIN = 31 MHz; (3) Intermodulation Distortion of –75 dBFS @ fIN = 140 MHz; (4)ENOB = 11.1 @ fIN = 10 MHz; (5) Low-Power Dissipation: 475 mW; (6)No Missing Codes Guaranteed; (7)Differential Nonlinearity Error: ±0.6 LSB; (8)Integral Nonlinearity Error: ±0.6 LSB; (9)Clock Duty Cycle Stabilizer; (10) Patented On-Chip Sample-and-Hold with Full Power Bandwidth of 750 MHz; (11) Straight Binary or Two’s Complement Output Data; (12) 48-Lead LQFP; (13) Single 5 V Analog Supply, 3 V/5 V Driver Supply; (13)Pin-Compatible to AD9220, AD9221, AD9223, AD9224, AD9225.
