Product Summary

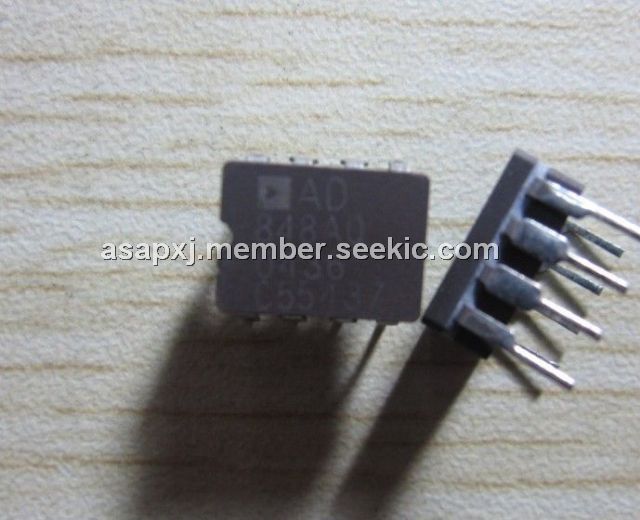

The AD848AQ is a high speed, low power monolithic operational amplifier. The AD848AQ is internally compensated so that it is stable for closed loop gains of 5 or greater.
The AD848AQ achieves its combination of fast ac and good dc performance by utilizing Analog Devices’ junction isolated complementary bipolar (CB) process. This process enables these op amps to achieve their high speed while only requiring 4.8 mA of current from the power supplies. The applications of the AD848AQ include Cable Drivers, 8- and 10-Bit Data Acquisition Systems, Video and RF Amplification, Signal Generators.

Parametrics

AD848AQ absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal Power Dissipation2; (3)Plastic (N): 1.1 Watts; (4)Small Outline (R): 0.9 Watts; (5)Cerdip (Q): 1.1 Watts; (6)LCC (E):0.8 Watts; (7)Input Voltage: ±VS; (8)Differential Input Voltage: ±6 V; (9)Storage Temperature Range (Q):–65℃ to +150℃; (10)(N, R):–65℃ to +125℃; (11)Junction Temperature: +175℃; (12)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD848AQ features: (1)175 MHz Gain Bandwidth; (2)4.8 mA Supply Current; (3)300 V/ms Slew Rate; (4)80 ns Settling Time to 0.1% for a 10 V Step; (5) Differential Gain: AD848 = 0.07%; (6) Differential Phase: AD848 = 0.088°; (7) Drives Capacitive Loads.

Diagrams

AD848AQ Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD848AQ
AD848AQ


IC OPAMP GP 175MHZ LP 32MA 8CDIP

Data Sheet

0-48: $5.10
