Product Summary
The AD8315ARMZ is a complete low cost subsystem for the precise control of RF power amplifiers operating in the frequency range 0.1 GHz to 2.5 GHz and over a typical dynamic range of 50 dB. It is intended for use in cellular handsets and other battery-operated wireless devices. The log amp technique provides a much wider measurement range and better accuracy than controllers using diode detectors. In particular, its temperature stability is excellent over a specified range of -30℃ to +85℃.
Parametrics
AD8315ARMZ absolute maximum ratings: (1)Supply Voltage VPOS: 5.5 V; (2)Temporary Overvoltage VPOS (100 cycles, 2 sec duration, ENBL Low): 6.3 V; (3)VAPC, VSET, ENBL: 0 V, VPOS; (4)RFIN: 17 dBm; (5)Equivalent Voltage: 1.6 V rms; (6)Internal Power Dissipation: 60 mW; (7)θJA (MSOP): 200℃/W; (8)θJA (LFCSP, Paddle Soldered): 80℃/W; (9)θJA (LFCSP, Paddle Not Soldered): 200℃/W; (10)Maximum Junction Temperature: 125℃; (11)Operating Temperature Range: -40℃ to +85℃; (12)Storage Temperature Range: -65°℃ to +150℃; (13)Lead Temperature (Soldering 60 sec): MSOP 300℃, LFCSP 240℃.
Features
AD8315ARMZ features: (1)Complete RF detector/controller function; (2)>50 dB range at 0.9 GHz (-49 dBm to +2 dBm, re 50 Ω); (3)Accurate scaling from 0.1 GHz to 2.5 GHz; (4)Temperature-stable linear-in-dB response; (5)Log slope of 23 mV/dB, intercept at -60 dBm at 0.9 GHz; (6)True integration function in control loop; (7)Low power: 20 mW at 2.7 V, 38 mW at 5 V; (8)Power-down to 10.8 μW.

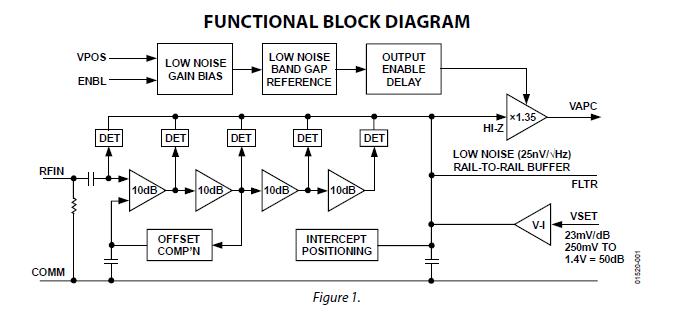

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8315ARMZ |
|
IC RF PA CTRLR 50DB GSM 8MSOP |
Data Sheet |
|
|
||||||
|
AD8315ARMZ-RL |
|
IC RF PA CTRLR 50DB GSM 8MSOP |
Data Sheet |
|
|
||||||
