Product Summary

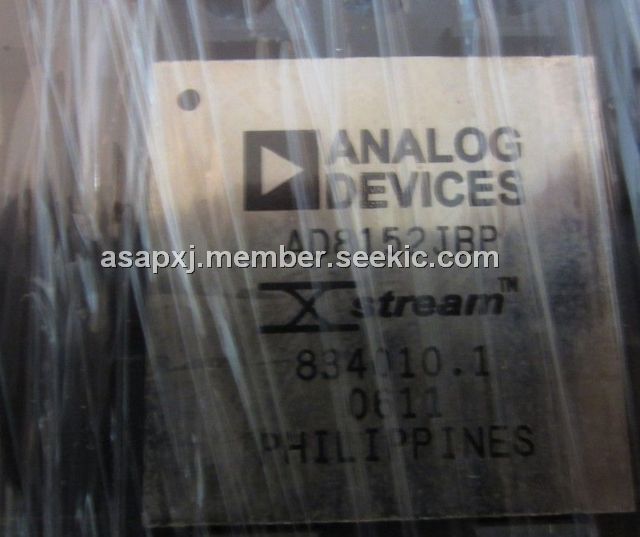

The AD8152JBP is a member of the Xstream line of products. The AD8152JB is a breakthrough in digital switching, offering a large switch array (34 × 34) on very little power, typically 2.0 W. Additionally, The AD8152JB operates at data rates up to 3.2 Gbps per port, making it suitable for Sonet/SDH OC-48 with Forward Error Correction (FEC).The applications of the AD8152JB are Fiber Optic Network Switching, High Speed Serial Backplane Routing to OC-48 with FEC, Gigabit Ethernet, Digital Video (HDTV), Data Storage Networks.
Parametrics
AD8152JBP absolute maximum ratings:(1)VCC to VEE: 3.7V; (2)VTTI :VCC + 0.6V; (3)VTTO:VCC + 0.6V; (4)Internal Power Dissipation2:8.33 W; (5)Input Voltage: VCC + 0.6V; (6)Differential Input Voltage:1.7V; (7)Logic Input Voltage: VEE – 0.3V＜VIN＜VCC + 0.6V; (8)Storage Temperature Range:–65℃ to +125℃; (9)Lead Temperature Range:300℃.
Features
AD8152JBP features: (1)Low Cost; (2)Low Power; (3)2.0 W @ 2.5 V (Outputs Enabled); (4)＜100 mW @ 2.5 V (Outputs Disabled); (5)34 ×34, Fully Differential, Non-blocking Array; (6)3.2 Gbps per Port NRZ Data Rate; (7)Wide Power Supply Range: 2.5 V to 3.3 V; (8)LVTTL or LVCMOS Level Control Inputs: @ 2.5 V to 3.3 V; (9)Low Jitter: 45 ps; (10)Drives a Backplane Directly; (11)Programmable Output Swing; (12)100 mV to 1.6 V Differential; (13)50Ω On-Chip I/O Termination; (14)User Controlled Voltage at the Load; (15)Minimizes Power Dissipation; (16)Dual Rank Latches; (17)Available in 256-Ball Grid Array.

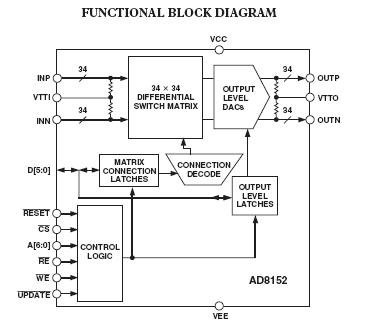

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD8152JBP |
|
IC CROSSPOINT SWIT 34X34 256BGA |
Data Sheet |
|
|
||||||||||
|
AD8152JBPZ |
|
IC CROSSPOINT SWIT 34X34 256BGA |
Data Sheet |
|
|
||||||||||
