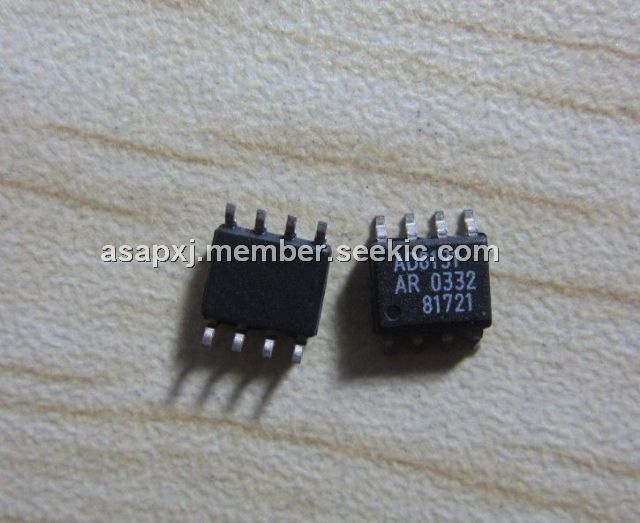

Product Summary

The AD8131AR is a differential or single-ended input to differential output driver requiring no external components for a fixed gain of 2. The AD8131AR is a major advancement over op amps for driving signals over long lines or for driving differential input ADCs. The applications of the AD8131AR are Video Line Driver, Digital Line Driver, Low Power Differential ADC Driver, Differential In/Out Level Shifting, Single-Ended Input to Differential Output Driver.

Parametrics

AD8131AR absolute maximum ratings: (1)Supply Voltage:±5.5 V; (2)VOCM:±VS; (3)Internal Power Dissipation:250 mW; (4)Operating Temperature Range:–40 to +85℃; (5)Storage Temperature Range:–65 to +150℃; (6)Lead Temperature (Soldering 10 sec):300℃.

Features

AD8131AR features: (1)High Speed; (2)400 MHz –3 dB Full Power Bandwidth; (3)2000 V/us Slew Rate; (4)Fixed Gain of 2 with No External Components; (5)Internal Common-Mode Feedback to Improve Gain and Phase Balance –60 dB @10 MHz; (6)Separate Input to Set the Common-Mode Output Voltage; (7)Low Distortion 68 dB SFDR @ 5 MHz 200 V Load; (8)Low Power 7.5 mA @ 3 V; (9)Power Supply Range +2.7 V to ±5 V.

Diagrams

AD8131AR Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD8131AR
AD8131AR


IC AMP DIFF LDIST 60MA 8SOIC

Data Sheet

0-98: $2.62
AD8131AR-EBZ
AD8131AR-EBZ


BOARD EVAL FOR AD8131AR

Data Sheet

0-1: $14.38
AD8131ARM-REEL7
AD8131ARM-REEL7


IC AMP DIFF LDIST 60MA 8MSOP

Data Sheet

Negotiable
AD8131ARM
AD8131ARM


IC AMP DIFF LDIST 60MA 8MSOP

Data Sheet

0-100: $2.39
AD8131ARM-EBZ
AD8131ARM-EBZ


BOARD EVAL FOR AD8131ARM

Data Sheet

0-1: $14.38
AD8131ARM-REEL
AD8131ARM-REEL

Analog Devices Inc

IC DIFF DVR HS 8-MSOP T/R

Data Sheet

1-3000: $1.78
AD8131ARZ-REEL7
AD8131ARZ-REEL7


IC AMP DIFF LDIST 60MA 8SOIC

Data Sheet

0-1000: $1.41
AD8131ARMZ-REEL7
AD8131ARMZ-REEL7


IC AMP DIFF LDIST 60MA 8MSOP

Data Sheet

0-1000: $1.41
1000-2000: $1.35
