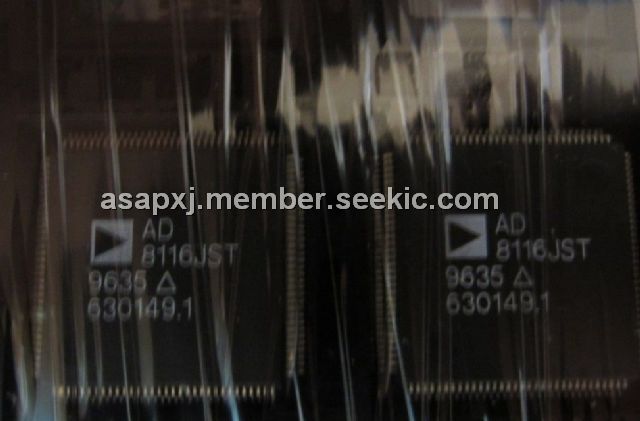

AD8116JST

Product Summary

The AD8116JST is a high speed 16×16 video cross point switch matrix. The AD8116JST offers a –3 dB signal bandwidth greater than 200 MHz and channel switch times of 60 ns with 0.1% settling. With –70 dB of crosstalk and –105 dB of isolation (@ 5 MHz), The AD8116JST is useful in many high speed applications. The differential gain and differential phase errors of better than 0.01% and 0.01°, respectively, along with 0.1 dB flatness out to 60 MHz make The AD8116JST ideal for video signal switching. The applications of the AD8116JST are Routing of High Speed Signals Including: Composite Video (NTSC, PAL, S, SECAM, etc.), Component Video (YUV, RGB, etc.); 3-Level Digital (HDB3); Video on Demand; Ultrasound; Communication Satellites.

Parametrics

AD8116JST absolute maximum ratings: (1)Supply Voltage:12.0 V; (2)Internal Power Dissipation2 AD8116JS 128-Lead Plastic LQFP (ST):3.5 W; (3)Input Voltage:±VS; (4)Output Short Circuit Duration：Observe Power Derating Curves; (5)Storage Temperature Range:–65℃ to +125℃; (6)Lead Temperature Range (Soldering 10 sec):+300℃.

Features

AD8116JST features: (1)Large 16 3 16 High Speed Non-blocking Switch Array; (2)Switch Array Controllable via an 80-Bit Serial Word; (3)Serial Data Out Allows “Daisy Chaining” of Multiple; (4)AD8116s to Create Large Switch Arrays Over 256×256; (5)Complete Solution; (6)Buffered Inputs; (7)16 Individual Output Amplifiers; (8)Drives 150 V Loads; (9)Excellent Video Performance; (10)60 MHz 0.1 dB Gain Flatness; (11)0.01% Differential Gain Error (RL = 150 V); (12)0.018 Differential Phase Error (RL = 150 V); (13)Excellent AC Performance; (14)200 MHz –3 dB Bandwidth; (15)300 V/ms Slew Rate; (16)Low Power of 900 mW (3.5 mW per Point); (17)Low All Hostile Crosstalk of –70 dB @ 5 MHz; (18)Output Disable Allows Direct Connection of Multiple; (19)Device Outputs; (20)Chip Enable Allows Selection of Individual AD8116s in; (21)Large Arrays (or Parallel Programming of AD8116s); (22)Reset Pin Allows Disabling of All Outputs (Connected; (23)Through a Capacitor to Ground Provides “Power-; (24)On” Reset Capability); (25)128-Lead LQFP Package (14 mm 3 14 mm).

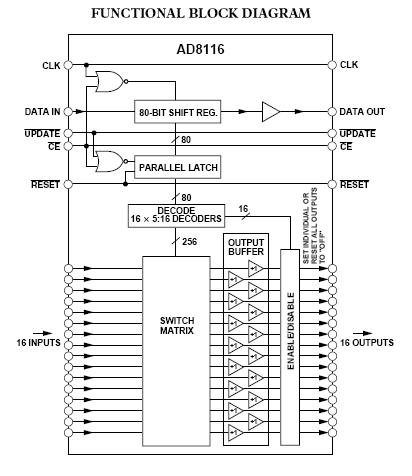

Diagrams
