Product Summary

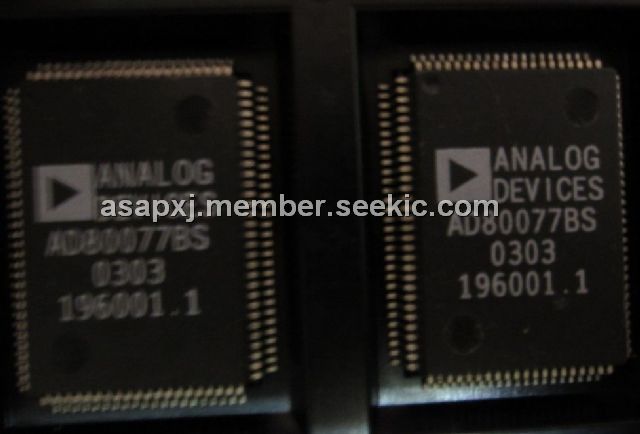

The AD80077BS is a high performance current feedback amplifier with ultralow distortion and noise. Unlike other high performance amplifiers, the low price and low quiescent current allow these amplifiers to be used in a wide range of applications. ADI’s proprietary second generation extra-Fast Complementary Bipolar (XFCB) process enables such high performance amplifiers with low power consumption. The applications of the AD80077BS include: Instrumentation, IF and Baseband Amplifiers, Filters, A/D Drivers, DAC Buffers.
Parametrics
AD80077BS absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Power Dissipation: See Figure 2; (3)Common-Mode Input Voltage : ±VS; (4)Differential Input Voltage: ±1.0 V; (5)Output Short Circuit Duration: See Figure 2; (6)Storage Temperature: –65℃ to +125℃; (7)Operating Temperature Range: –40℃ to +85℃; (8)Lead Temperature Range (soldering 10 sec): 300℃.
Features
AD80077BS features: (1)Extremely Low Distortion; (2)Second Harmonic:–83 dBc @ 20 MHz; (3)Third Harmonic:–92 dBc @ 20 MHz ; (4)High Speed; (5)650 MHz, –3 dB Bandwidth (G = +1); (6)1000 V/μs Slew Rate; (7)Low Noise; (8)2.7 nV/√￣Hz Input Voltage Noise; (9)22.5 pA/√￣Hz Input Inverting Current Noise; (10)Low Power; (11)9 mA/Amplifier Typ Supply Current; (12)Wide Supply Voltage Range：5 V to 12 V; (13)0.5 mV Typical Input Offset Voltage; (14)Small Packaging：SOIC-8, MSOP, and SC70 Packages Available.
Diagrams
 |
