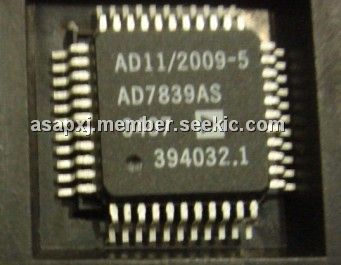

AD7839AS

DAC, MQFP, 13-Bit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~17.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~17.00

PartNumber:: AD7839AS

Brand:: Analog Devices - ADI | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-26

From Other Seller

Part Number:AD7839AS
US $0.10 - 17.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

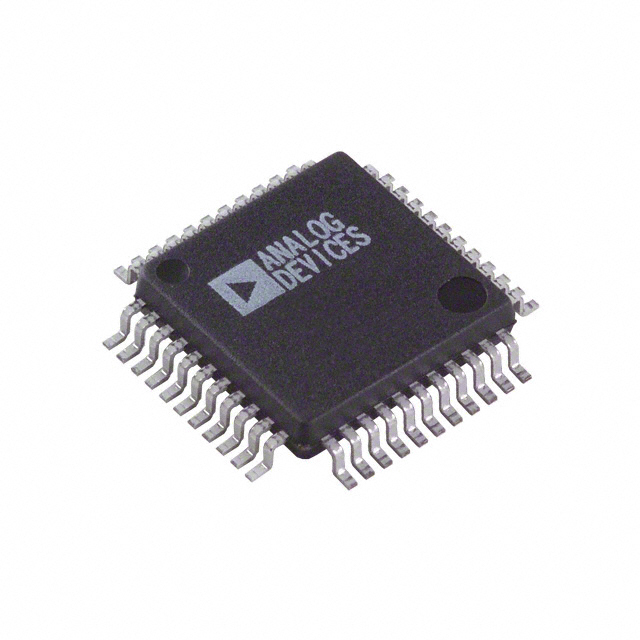

The AD7839AS is an Octal 13-Bit, Parallel Input, Voltage-Output DAC. It contains eight 13-bit DACs on one monolithic chip. The device has output voltages with a full-scale range of ±10 V from reference voltages of ±5V. The AD7839AS accepts 13-bit parallel loaded data from the external bus into one of the input registers under the control of the WR, CS and DAC channel address pins, A0–A2. The AD7839AS DAC outputs are updated on reception of new data into the DAC registers. All the outputs may be updated simultaneously by taking the LDAC input low. Each DAC output is buffered with a gain-of-two amplifier into which an external DAC offset voltage can be inserted via the DUTGNDx pins. The AD7839AS is available in a 44-lead MQFP package. The applications of it include Automatic Test Equipment, Process Control, General Purpose Instrumentation.

Parametrics

AD7839AS absolute maximum ratings: (1)VCC to GND3:–0.3 V, +7 V or VDD + 0.3 V(Whichever Is Lower); (2)VDD to GND:–0.3 V, +17 V; (3)VSS to GND:+0.3 V, –17 V; (4)Digital Inputs to GND:–0.3 V, VCC + 0.3 V; (5)VREF(+) to VREF(–) :–0.3 V, +18 V; (6)VREF(+) to GND:VSS – 0.3 V, VDD + 0.3 V; (7)VREF(–) to GND:VSS – 0.3 V, VDD + 0.3 V; (8)DUTGND to GND:VSS – 0.3 V, VDD + 0.3 V; (9)VOUT (A–H) to GND:VSS – 0.3 V, VDD + 0.3 V; (10)Operating Temperature Range:; (11)Industrial (A Version):–40℃ to +85℃; (12)Storage Temperature Range:–65℃ to +150℃; (13)Junction Temperature (TJ max):+150℃; (14)MQFP Package:Power Dissipation:(TJ max – TA)/θJA,θJA Thermal Impedance:95℃/W; (15)Lead Temperature, Soldering: Vapor Phase (60 sec):+215℃, Infrared (15 sec):+220℃; (16)ESD Rating:>4000 V.

Features

AD7839AS features: (1)Eight 13-Bit DACs in One Package; (2)Voltage Outputs; (3)Offset Adjust for Each DAC Pair; (4)Reference Range of 65 V; (5)Maximum Output Voltage Range of 610 V; (6)Clear Function to User-Defined Voltage; (7)44-Lead MQFP Package.
