Product Summary

The AD569BD is a monolithic 16-bit digital-to-analog converter (DAC) manufactured in Analog Devices’ BiMOS II process. BiMOS II allows the fabrication of low power CMOS logic functions on the same chip as high precision bipolar linear circuitry. The AD569BD chip includes two resistor strings, selector switches decoding logic, buffer amplifiers, and double-buffered input latches. The AD569BD’s voltage-segmented architecture insures 16-bit monotonicity over time and temperature. Integral nonlinearity is maintained at ±0.01%, while differential nonlinearity is ±0.0004%. The on-chip, high-speed buffer amplifiers provide a voltage output settling time of 3 ms to within ±0.001% for a full-scale step.

Parametrics

AD569BD absolute maximum ratings: (1)+VS (Pin 1) to GND (Pin 18): +18 V, –0.3 V; (2)–VS (Pin 28) to GND (Pin 18): –18 V, +0.3 V; (3)+VS (Pin 1) to –VS (Pin 28): +26.4 V, –0.3 V; (4)Digital Inputs; (5)(Pins 4-14, 19-27) to GND (Pin 18): +VS, –0.3 V; (6)+VREF Force (Pin 3) to +VREF Sense (Pin 2): ±16.5 V; (7)–VREF Force (Pin 15) to –VREF Sense (Pin 16): ±16.5 V; (8)VREF Force (Pins 3, 15) to GND (Pin 18): ±VS; (9)VREF Sense (Pins 2, 16) to GND (Pin 18): ±VS; (10)VOUT (Pin 17): Indefinite Short to GND, Momentary Short to +VS, –VS; (11)Power Dissipation (Any Package): 1000 mW; (12)Operating Temperature Range: Commercial Plastic (JN, KN, JP, KP Versions) 0℃ to +70℃, Industrial Ceramic (AD, BD Versions): –25℃ to +85℃, Extended Ceramic (SD Versions): –55℃ to +125℃; (13)Storage Temperature: –65℃ to +150℃; (14)Lead Temperature Range (Soldering, 10 secs): +300℃.

Features

AD569BD features: (1)Guaranteed 16-Bit Monotonicity; (2)Monolithic BiMOS II Construction; (3)60.01% Typical Nonlinearity; (4)8- and 16-Bit Bus Compatibility; (5)3 ms Settling to 16 Bits; (6)Low Drift; (7)Low Power; (8)Low Noise.

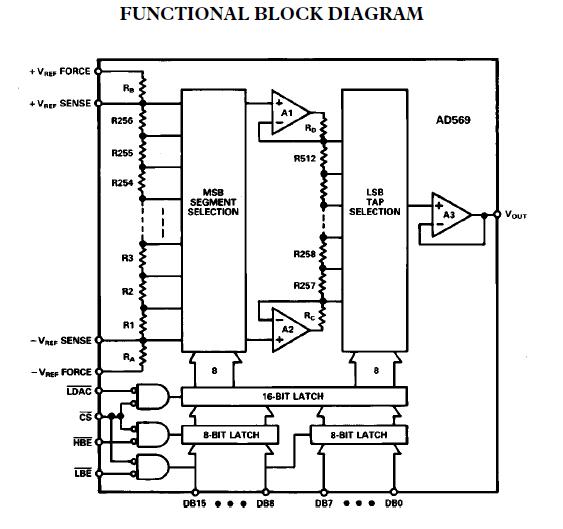

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

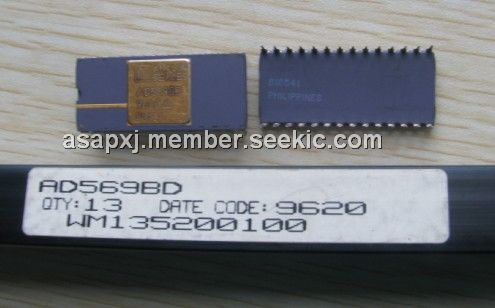

AD569BD
AD569BD

IC DAC 16BIT MONO 28-CDIP
Data Sheet
Negotiable
