74LVT16244BDL+112

high-performance BiCMOS product, 3.3V, 48SSOP, 64 mA, 74LVT16244BDL+112

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.32 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.32

PartNumber:: 74LVT16244BDL+112

Brand:: NXP Semiconductors - nxp | Pack: SSOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-13

From Other Seller

Part Number:74LVT16244BDL+112
US $0.32 - 0.32
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

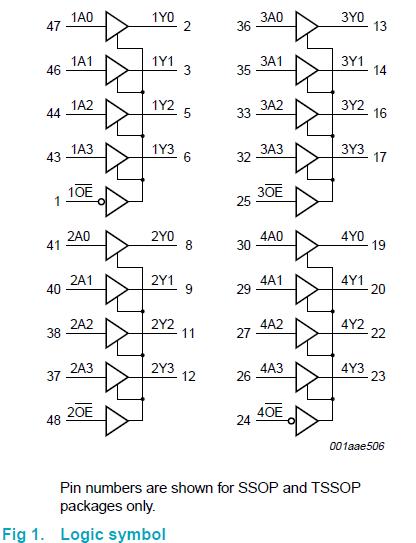

The 74LVT16244BDL+112 is a high-performance BiCMOS product designed for VCC operation at 3.3 V. This device is a 16-bit buffer and line driver featuring non-inverting 3-state bus outputs. The 74LVT16244BDL+112 can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer.

Parametrics

74LVT16244BDL+112 absolute maximum ratings: (1)VCC, supply voltage: -0.5 to +4.6 V; (2)VI, input voltage: -0.5 to +7.0 V; (3)VOUT, output voltage, output in OFF-state or HIGH-state: -0.5 to +7.0 V; (4)IIK, input clamping current ,VI < 0 V: -50 mA; (5)IOK, output clamping current, VO < 0 V: -50 mA; (6)IOUT, output current output in LOW-state: 128 mA; output in HIGH-state: -64 mA; (7)Tstg, storage temperature: -65 +150℃.

Features

74LVT16244BDL+112 features: (1)16-bit bus interface; (2)3-state buffers; (3)Output capability: +64 mA and -32 mA; (4)TTL input and output switching levels; (5)Input and output interface capability to systems at 5 V supply; (6)Bus hold data inputs eliminate need for external pull-up resistors to hold unused inputs; (7)Power-up 3-state; (8)Live insertion and extraction permitted; (9)No bus current loading when output is tied to 5 V bus; (10)Latch-up protection: JESD78: exceeds 500 mA; (11)ESD protection: MIL STD 833 method 3015: exceeds 2000 V; Machine model: exceeds 200 V.
