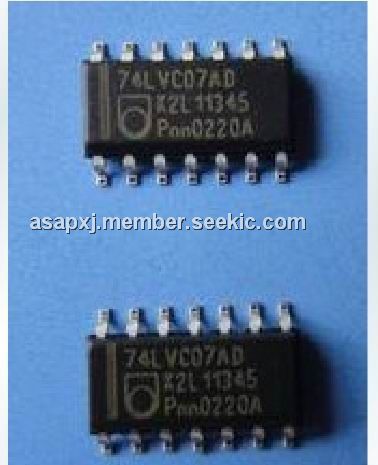

Product Summary
The 74LVC07AD is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs can be driven from either 3.3 or 5 V devices. This feature allows the use of the 74LVC07AD as translators in a mixed 3.3 to 5 V environment. The 74LVC07A provides six non-inverting buffers. The outputs of the 74LVC07AD are open drain and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions.
Parametrics
74LVC07AD absolute maximum ratings: (1)VCC, supply voltage: 1.65 to 5.5 V; (2)VI, input voltage: 0 to 5.5 V; (3)VO, output voltage: 0 to 5.5 V active mode; 0 to 5.5 V high-impedance mode; (4)Tamb, operating ambient temperature: -40 +125℃; (5)tr, tf, input rise and fall ratios: 0 20 ns/V when VCC = 1.65 to 2.7 V; 0 10 ns/V when VCC = 2.7 to 5.5 V.
Features
74LVC07AD features: (1)5 V tolerant inputs and outputs (open drain) for interfacing with 5 V logic; (2)Wide supply voltage range from 1.65 to 5.5 V; (3)CMOS low power consumption; (4)Direct interface with TTL levels; (5)Inputs accept voltages up to 5 V; (6)Complies with JEDEC standard no. 8-1A; (7)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V.

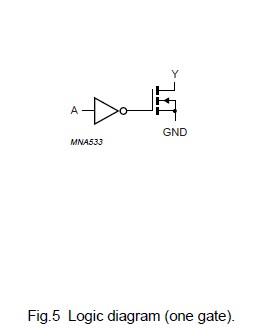

Diagrams
