Product Summary

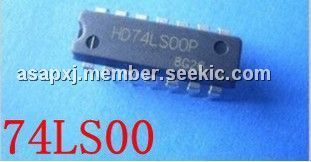

The 74LS00 is an Quad 2-Input NAND Gate. This device contains four independent gates each of which performs the logic NAND function.
Parametrics
74LS00 absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0 to +70℃; (4)Storage Temperature Range: -65 to +150℃.
Features
74LS00 features: (1)VCC, Supply Voltage: 4.75 to 5.25 V, 5V typ; (2)VIH, HIGH Level Input Voltage: 2 V; (3)VIL, LOW Level Input Voltage: 0.8 V; (4)IOH, HIGH Level Output Current: -0.4 mA; (5)IOL, LOW Level Output Current: 8 mA; (6)TA, Free Air Operating Temperature: 0 to 70℃.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LS00 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
74LS00N |
Other |
|
Data Sheet |
Negotiable |
|
||||
