Product Summary

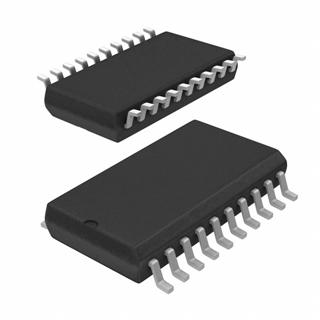

The 74LCX373SJX is a Low Voltage Octal Transparent Latch with 5V Tolerant Inputs and Outputs. The device is designed for low voltage applications with capability of interfacing to a 5V signal environment. The 74LCX373SJX is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Parametrics
74LCX373SJX absolute maximum ratings: (1)VCC Supply Voltage: -0.5 to +7.0 V; (2)VI DC Input Voltage -0.5 to +7.0 V; (3)VO DC Output Voltage: -0.5 to VCC + 0.5 V; (4)IIK DC Input Diode Current: -50 mA; (5)IOK DC Output Diode Current: -50 mA; (6)IO DC Output Source/Sink Current: ±50 mA; (7)ICC DC Supply Current per Supply Pin: ±100 mA; (8)IGND DC Ground Current per Ground Pin: ±100 mA; (9)TSTG Storage Temperature: -65 to +150 ℃.
Features
74LCX373SJX features: (1)5V tolerant inputs and outputs; (2)2.3V–3.6V VCC specifications provided; (3)8.0ns tPD max (VCC = 3.3V), 10 μA ICC max; (4)Power down high impedance inputs and outputs; (5)Supports live insertion/withdrawal1; (6)±24mA output drive (VCC = 3.0V); (7)Implements patented noise/EMI reduction circuitry; (8)Latch-up performance exceeds JEDEC 78 conditions; (9)ESD performance; (10)Leadless Pb-Free DQFN package.

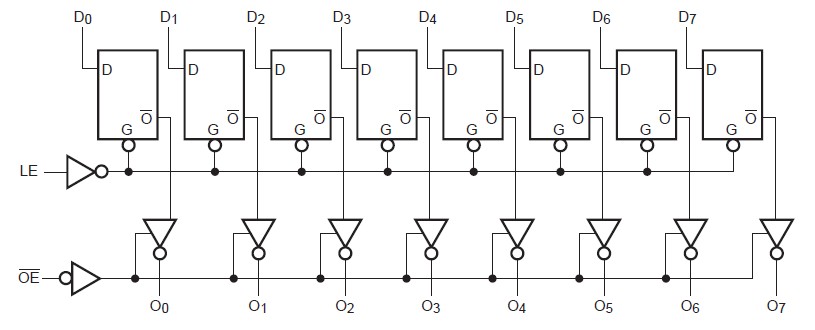

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74LCX373SJX |
Fairchild Semiconductor |
Latches Octal Trans Latch |
Data Sheet |
|
|
||||||||||||||||||
