Product Summary

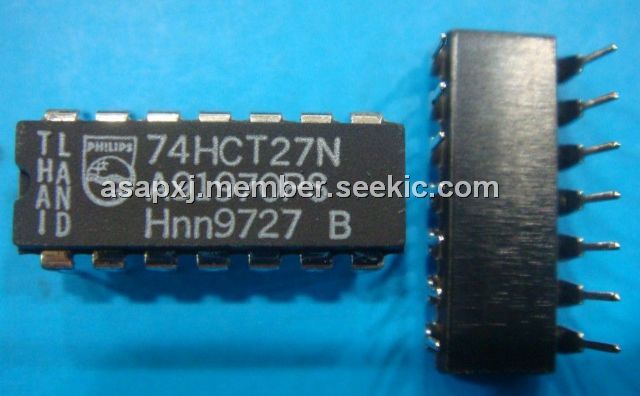

The 74HCT27N is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL(LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT27N provides the 3-input NOR function.
Parametrics
74HCT27N characteristics: (1)tPHL/ tPLH propagation delay nA, nB, nC to nY: Tamb=+25℃: typ=12ns, max=21ns; Tamb=-40 to +85℃: max=26ns; Tamb=-40 to +125℃: max=32ns; VCC: 4.5V; (2)tTHL/ tTLH output transition time: Tamb=+25℃: typ=7ns, max=15ns; Tamb=-40 to +85℃: max=19ns; Tamb=-40 to +125℃: max=22ns; VCC: 4.5V.
Features
74HCT27N features: (1)Output capability: standard; (2)ICC category: SSI.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74HCT27N,652 |
NXP Semiconductors |
Gates (AND / NAND / OR / NOR) TRIPLE 3-INPUT NOR GATE |
