Product Summary

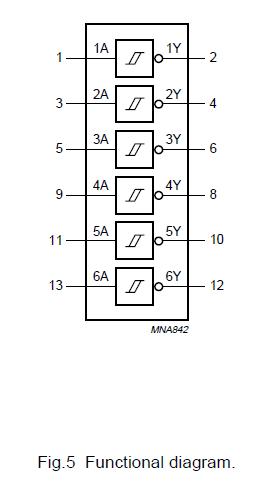

The 74HCT14D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 74HCT14D provides six inverting buffers with Schmitt-trigger action. It is capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Parametrics

74HCT14D absolute maximum ratings: (1)supply voltage: -0.5 to +7 V; (2)input diode current: ±20 mA at VI < -0.5 V or VI > VCC + 0.5 V; (3)output diode current: ±20 mA at VO < -0.5 V or VO > VCC + 0.5 V; (4)output source or sink current: ±25 mA at -0.5 V < VO < VCC + 0.5 V; (5)VCC or GND current: 50 mA; (6)storage temperature: -65 to +150 ℃; (7)power dissipation Tamb = -40 to +125 ℃: DIP14 packages: 750 mW, Other packages: 500 mW.

Features

74HCT14D features: (1)Applications: Wave and pulse shapers, Astable multivibrators, Monostable multivibrators; (2)Complies with JEDEC standard no. 7A; (3)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V, MM EIA/JESD22-A115-A exceeds 200 V.; (4)Specified from -40 to +85 ℃ and -40 to +125 ℃.
