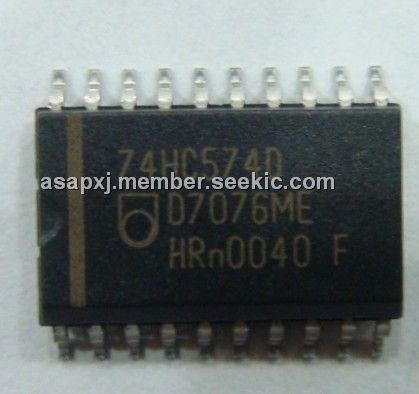

74HC574D

Si-gate CMOS device, SOP, 2.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~1.00

PartNumber:: 74HC574D

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-23

From Other Seller

Part Number:74HC574D
US $0.10 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74HC574D is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard no. 7A. The 774HC574N is an octal D-type flip-flop featuring separate D-type inputs for each flip-flop and non-inverting 3-state outputs for bus oriented applications. A clock (CP) and an output enable (OE) input are common to all flip-flops.

Parametrics

74HC574N characteristics: (1)tPHL/ tPLH propagation delay CP to Qn: Tamb=+25℃: typ=47ns, max=150ns; Tamb=-40 to +85℃: max=190ns; Tamb=-40 to +125℃: max=225ns; VCC: 2.0V; (2)tPZH/ tPZL 3-state output enable time OE to Qn: Tamb=+25℃: typ=44ns, max=140ns; Tamb=-40 to +85℃: max=175ns; Tamb=-40 to +125℃: max=210ns; VCC: 2.0V; (3)tPHZ/ tPLZ 3-state output disable time OE to Qn: Tamb=+25℃: typ=39ns, max=125ns; Tamb=-40 to +85℃: max=155ns; Tamb=-40 to +125℃: max=190ns; VCC: 2.0V; (4)tTHL/ tTLH output transition time: Tamb=+25℃: typ=14ns, max=60ns; Tamb=-40 to +85℃: max=75ns; Tamb=-40 to +125℃: max=90ns; VCC: 2.0V.

Features

74HC574N features: (1)3-state non-inverting outputs for bus oriented applications; (2)8-bit positive edge-triggered register; (3)Common 3-state output enable minput; (4)Independent register and 3-state buffer operation; (5)Output capability: bus driver; (6)ICC category: MSI.
