Product Summary
The 74AHCT1G04GW is a single inverter gate with a standard push-pull output. The device of the 74AHCT1G04GW is designed for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function: Y = A. The applications of the 74AHCT1G04GW include General Purpose Logic, Wide array of products such as: PCs, networking, notebooks, netbooks, PDAs, Computer peripherals, hard drives, CD/DVD ROM, TV, DVD, DVR, set top box, Personal Navigation / GPS, MP3 players ,Cameras, Video Recorders.
Parametrics
74AHCT1G04GW absolute maximum ratings: (1)Human Body Model ESD Protection: 2KV; (2)Charged Device Model ESD Protection: 1KV; (3)Machine Model ESD Protection: 200V; (4)Supply Voltage Range: 0.5 to 6.5V; (5)Input Voltage Range: 0.5 to 6.5V; (6)Voltage applied to output in high or low state: -0.5 to VCC+0.5V; (7)Input Clamp Current VI＜0: -20mA; (8)Output Clamp Current (VO＜0 or VO＞VCC): ±20mA; (9)Continuous output current (VO = 0 to VCC): ±25mA; (10)Continuous current through VCC: 50mA; (11)Continuous current through GND: -50mA; (12)Operating Junction Temperature: -40℃ to 150℃; (13)Storage Temperature: -65℃ to 150℃.
Features
74AHCT1G04GW features: (1)Supply Voltage Range from 2.0V to 5.5V; (2)±8 mA Output Drive at 5.0V; (3)CMOS low power consumption; (4)Schmitt Trigger Action at Input Makes the Circuit Tolerant for Slower Input Rise and Fall Time; (5)ESD Protection per JESD 22; (6)Exceeds 200-V Machine Model (A115-A); (7)Exceeds 2000-V Human Body Model (A114-A); (8)Exceeds 1000-V Charged Device Model (C101C); (9)Latch-Up Exceeds 100mA per JESD 78, Class II; (10)SOT25 and SOT353: Assembled with "Green" Molding Compound (no Br, Sb); (11)Lead Free Finish / RoHS Compliant.

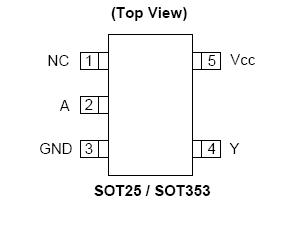

Diagrams
