Product Summary

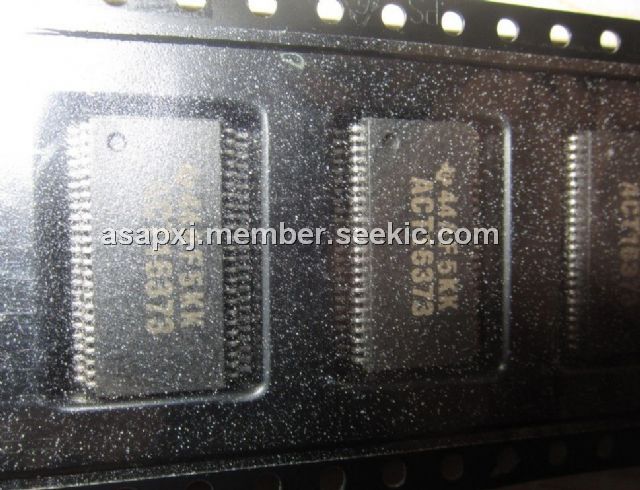

The 74ACT16373DLR is a 16-bit D-type transparent latch with 3-state outputs. The 74ACT16373DLR is designed specifically for driving highly capacitive or relatively low-impedance loads. The 74ACT16373DLR is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These devices can be used as two 8-bit latches or one 16-bit latch. The Q outputs of the latches follow the data (D) inputs if enable C is taken high. When C is taken low, the Q outputs are latched at the levels set up at the D inputs.
Parametrics
74ACT16373DLR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5V to 7V; (2)Input voltage range, VI (see Note 1): –0.5V to VCC + 0.5V; (3)Output voltage range, VO (see Note 1): –0.5V to VCC + 0.5V; (4)Input clamp current, IIK (VI < 0 or VI > VCC): ±20mA; (5)Output clamp current, IOK (VO < 0 or VO > VCC): ±50mA; (6)Continuous output current, IO (VO = 0 to VCC):±50mA; (7)Continuous current through VCC or GND: ±400mA; (8)Maximum power dissipation at TA = 55°C (in still air) (see Note 2): DL package: 1.2W; (9)Storage temperature range, Tstg: -65℃ to 150℃.
Features
74ACT16373DLR features: (1)Members of the Texas Instruments Widebus Family; (2)Inputs Are TTL-Voltage Compatible; (3)3-State Bus Driving True Outputs; (4)Full Parallel Access for Loading; (5)Flow-Through Architecture Optimizes PCB Layout; (6)Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise; (7)EPIC(Enhanced-Performance Implanted; (8)CMOS) 1-μm Process; (9)500-mA Typical Latch-Up Immunity at; (10)125℃; (11)Package Options Include Shrink; (12) Small-Outline (DL) 300-mil Packages Using; (13)25-mil Center-to-Center Pin Spacings and 380-mil Fine-Pitch Ceramic Flat (WD); (14) Packages Using 25-mil Center-to-Center; (15) Pin Spacings.

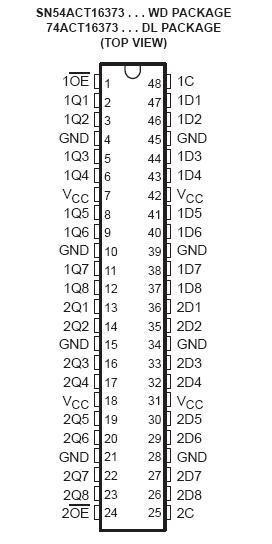

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74ACT16373DLR |
Texas Instruments |
Latches Tri-St. 16bit D-Type |
Data Sheet |
|
|
||||||||||||
|
74ACT16373DLRG4 |
Texas Instruments |
Latches Tri-St. 16bit D-Type |
Data Sheet |
|
|
||||||||||||
