Product Summary

The 2SD2686 is a Transistor. It is designed for Solenoid Drive and Motor Drive Applications.

Parametrics

2SD2686 absolute maximum ratings: (1)Collector-base voltage VCBO: 50 V; (2)Collector-emitter voltage VCEO: 60±10 V; (3)Emitter-base voltage VEBO: 8 V; (4)Collector current DC IC: 1 A, Pulse ICP: 3 A; (5)Base current IB: 0.5 A; (6)Collector power dissipation DC: 1.0 W; (7)Junction temperature Tj: 150 ℃; (8)Storage temperature range Tstg: -55 to 150 ℃.

Features

2SD2686 features: (1)High DC current gain: hFE = 2000 (min) (VCE = 2 A, IC = 1 A); (2)Zener diode included between collector and base.

Diagrams

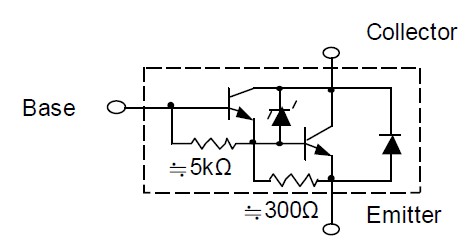

2SD2686 diagram
