Product Summary

The 24C08 is a 8 Kbits I2C bus EEPROM.

Parametrics

24C08 absolute maximum ratings: (1)Ambient Operating Temperature: –40 to 125 ℃; (2)Storage Temperature: –65 to 150 ℃; (3)Lead Temperature, Soldering: (SO8 package) 40 sec: 215 ℃, (PSDIP8 package) 10 sec: 260 ℃; (4)Input or Output Voltages: –0.6 to 6.5 V; (5)Supply Voltage: –0.3 to 6.5 V; (6)Electrostatic Discharge Voltage (Human Body model): 4000 V; (7)Electrostatic Discharge Voltage (Machine model): 500 V.

Features

24C08 features: (1)1 million erase/write cycles with 40 years data retention; (2)single supply voltage: 3V to 5.5V for ST24x08 versions, 2.5V to 5.5V for ST25x08 versions; (3)hardware write control versions: ST24W08 and ST25W08; (4)programmable write protection; (5)two wire serial interface, fully I2C BUS compatible; (6)byte and multibyte write (up to 8 bytes); (7)page write (up to 16 bytes); (8)byte, random and sequential read modes; (9)self timed programming cycle; (10)automatic address incrementing; (11)enhanced esd/latch up performances.

Diagrams

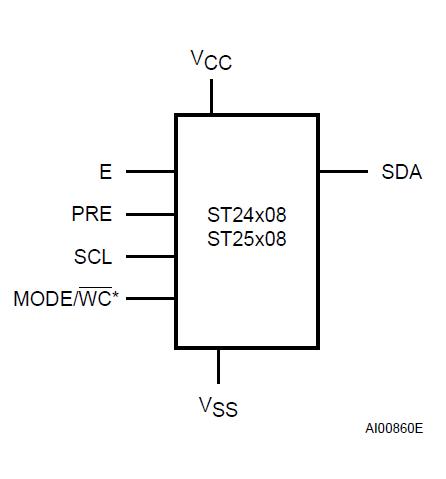

24C08 logic diagram
