Product Summary

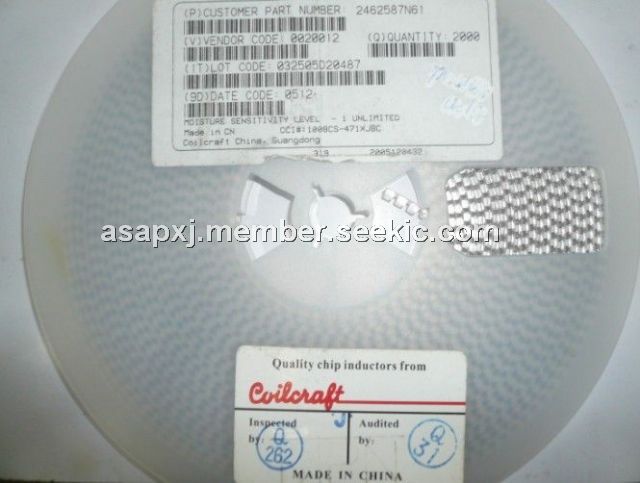

The 1008CS-471XJBC is the chip inductor which belongs to 1008CS series.

Parametrics

1008CS-471XJBC absolute maximum ratings: (1)Weight: 29.6 – 37.4 mg; (2)Ambient temperature: –40 to +125℃ with Irms current, +125 to +140℃ with derated current; (3)Storage temperature Component: –40 to +140℃; (4)Packaging: –40 to +80℃; (5)Inductance: 470 nH @ 25 MHz.

Features

1008CS-471XJBC features: (1)High SRF and excellent Q values; (2)Tight tolerances, many values at 1%; (3)39 inductance values from 10 nH to 8.2 μH.

Diagrams

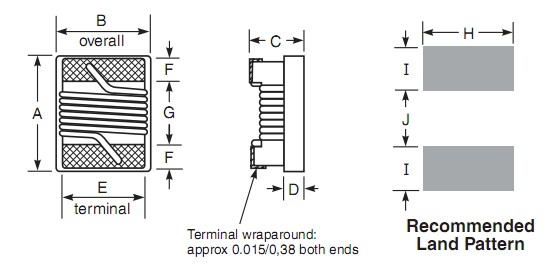

1008CS-471XJBC dimensions
