Product Summary

The 052N03S is a power transistor.

Parametrics

052N03S absolute maxing ratings: (1)052N03S absolute maxing ratings: On the condition of TC=25℃, Continuous drain current ID: 80A; (2)On the condition of TC=100℃, ID: 50A; On the conditions of TA=25℃, RthJA=45K/W2, ID: 18A; (3)On the condition of TC=25℃, Pulsed drain current ID,pulse: 200A; (4)On the condition of ID=50A, RGS=25Ω, Avalanche energy, single pulse, EAS: 168mJ; (5)Gate source voltage VGS: ±20V; (6)Operating and storage temperature, Tj, Tstg: -55~150℃.

Features

052N03S features: (1)Fast switching MOSFET for SMPS; (2)Optimized technology for notebook DC/DC converters; (3)Qualified according to JEDEC for target applications; (4)Logic level / N-channel; (5)Excellent gate charge x R DS(on) product (FOM); (6)Very low on-resistance R DS(on); (7)Superior thermal resistance; (8)Avalanche rated; dv/dt rated; (9)Pb-free lead plating; RoHS compliant; (10)Halogen-free according to IEC61249-2-21.

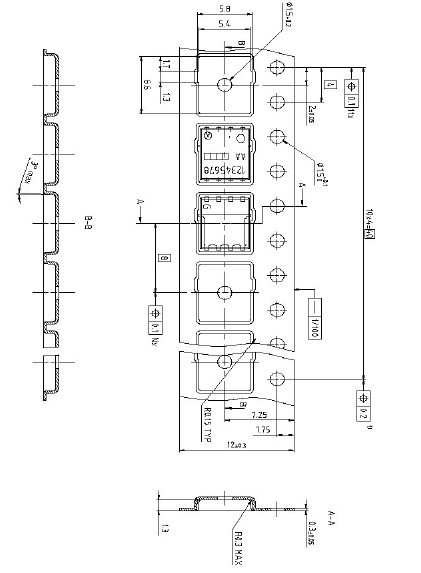

Diagrams

052N3S
052N3S
