Product Summary
The X9221AUP Dual Digitally Controlled Potentiometer integrates two digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated microcircuit. The digitally controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The X9221AUP can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.
Parametrics
X9221AUP absolute maximum ratings: (1)Temperature Under Bias: -65 to +135℃; (2)Storage Temperature: -65 to +150℃; (3)Voltage on SCK, SCL or Any Address, Input With Respect to VSS: -1V to +7V; (4)Voltage on Any VH/RH, VW/RW or VL/RL Referenced to VSS: +6V / -4.3V; (5)△V = |VH/RH–VL/RL|: 10.3V; (6)Lead Temperature (soldering, 10 seconds): 300℃; (7)IW (10s): ±6mA.
Features
X9221AUP features: (1)Two XDCPs in one package; (2)2-wire serial interface; (3)Register oriented format, 8 registers total: Directly write wiper position; Read wiper position; Store as many as four positions per pot; (4)Instruction format: Quick transfer of register contents to resistor array; (5)Direct write cell: Endurance–100,000 writes per bit per register; (6)Resistor array values: 2kΩ, 10kΩ, 50kΩ; (7)Resolution: 64 taps each pot; (8)20 Ld plastic DIP and 20-lead SOIC packages; (9)Pb-free plus anneal available (RoHS compliant).

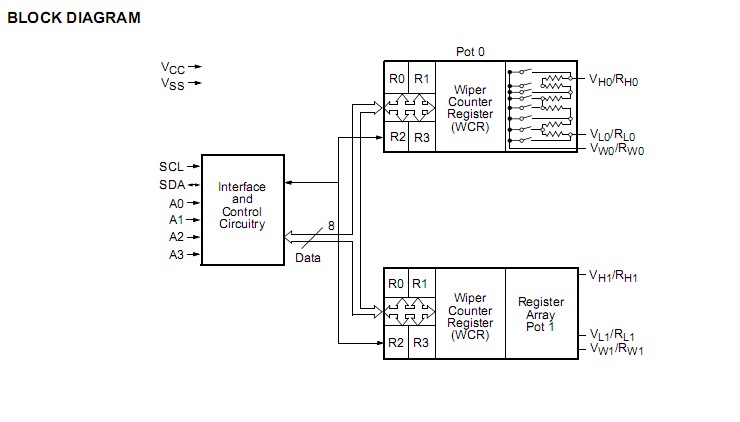

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

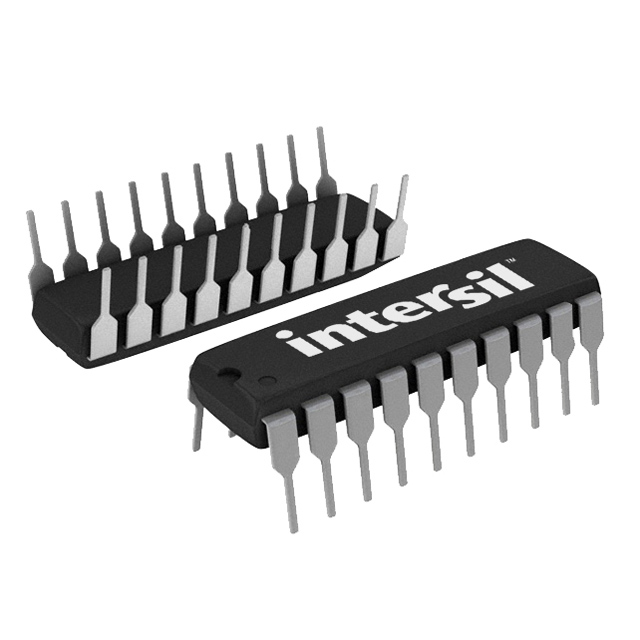

 X9221AUP |
|
IC XDCP DUAL 50K 2-WIRE 20-DIP |
Data Sheet |
Negotiable |
|
||||||
|
X9221AUPI |
|
IC XDCP DUAL 50K 2-WIRE 20-DIP |
Data Sheet |
Negotiable |
|
||||||
|
X9221AUPIZ |
|
IC XDCP DUAL 50K 2-WIRE 20-DIP |
Data Sheet |
|
|
||||||
|
X9221AUPZ |
|
IC XDCP DUAL 50K 2-WIRE 20-DIP |
Data Sheet |
|
|
||||||
