Product Summary

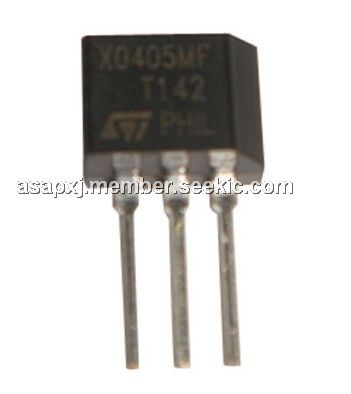

The X0405MF is suitable for all applications where the available gate current is limited, such as capacitive discharge ignitions, motor control in kitchen aids, overvoltage crowbar protection in low power supplies.
Parametrics
X0405MF absolute maxing ratings: (1)IT(RMS) RMS on-state current (180° conduction angle) Tl = 60℃: 4 A; Tamb = 25℃: 1.35A; (2)IT(AV) Average on-state current (180° conduction angle) Tl = 60℃: 2.5 A; Tamb = 25℃: 0.9A; (3)ITSM Non repetitive surge peak on-state current tp = 8.3 ms Tj = 25℃: 33 A; tp = 10 ms: 30A; (4)I2t I2t Value for fusing tp = 10 ms Tj = 25℃: 4.5 A2S; (5)dI/dt Critical rate of rise of on-state current IG = 2 × IGT , tr ≤ 100ns F = 60 Hz Tj = 125℃: 50 A/μs; (6)IGM Peak gate current tp = 20 μs Tj = 125℃: 1.2 A.
Features
X0405MF features: (1)IT(RMS): 4 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT: 50 to 200 μA.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X0405MF |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
X0405MF 1AA2 |
STMicroelectronics |
SCRs 4.0 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
