Product Summary
The X0205MA SCR is suitable for all applications where the available gate current is limited, such as ground fault circuit interruptors, overvoltage crowbar protection in low power supplies, capacitive ignition circuits.
Parametrics
X0205MA absolute maximum ratings: (1)IT(RMS) RMS on-state current (180° conduction angle),TO-92 TI = 55℃: 1.25 A; (2)IT(AV) Average on-state current (180° conduction angle), TO-92 TI = 55℃: 0.8 A; (3)ITSM, Non repetitive surge peak on-state current,tp = 8.3 ms,Tj = 25℃: 25A; tp = 10 ms: 22.5A;; (4)I2t, I2t Value for fusing, tp = 10 ms, Tj = 25℃: 2.5 A2S; (5)dI/dt, Critical rate of rise of on-state current IG = 2 x IGT , tr≤ 100 ns F = 60 Hz Tj = 125℃: 50 A/μs; (6)IGM Peak gate current tp = 20 μs Tj = 125℃: 1.2 A; (7)PG(AV) Average gate power dissipation, Tj = 125℃: 0.2 W.
Features
X0205MA features: (1)IT(RMS): 1.25 A; (2)VDRM/VRRM: 600 and 800 V; (3)IGT: 50 to 200 μA.

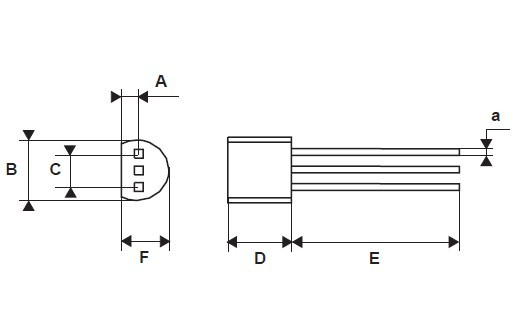

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 X0205MA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
X0205MA 2BL2 |
STMicroelectronics |
SCRs 1.25A SCRS |
Data Sheet |
|
|
||||||||||||
|
X0205MA 1BA2 |
STMicroelectronics |
SCRs 1.25 Amp 600 Volt |
Data Sheet |
|
|
||||||||||||
