Product Summary

The VSSR1601222 Vishay Thin Film resistor network is designed to be used in either analog or digital circuits. The use of thin film resistive elements within the network allows you to achieve an infinite number of very low noise and high stability circuits for industrial, medical and scientific instrumentation. The VSSR1601222 is packaged in molded plastic packages with sizes that are recognized throughout the world. The rugged packaging offers superior environmental protection and consistent dimensions for ease of placement with automatic SMT equipment. The VSSR1601222 designs and values for off-the-shelf convenience.

Parametrics

VSSR1601222 absolute maximum ratings: (1)Electrical Specifications: 16, 20, 24; (2)Resistance Range: 10 Ω to 47 kΩ; (3)TCR: Tracking: NA, Absolute: ± 100 ppm/℃ at - 55 ℃ to + 125 ℃; (4)Tolerance: Ratio: NA, Absolute: ± 5 % standard (± 2 % available)/per E - 24 table, ± 1 % standard (check factory)/per E - 96 table; (5)Power Rating: Resistor: 100 mW (max.) at + 70 ℃, Package: 16 = 1.0 W 20 = 1.2 W 24 = 1.4 W at 0 ℃ to + 70 ℃; (6)Voltage Coefficient: 5 ppm/V typ.; (7)Working Voltage: 50 VDC; (8)Operating Temperature Range: - 55 ℃ to + 125 ℃; (9)Storage Temperature Range: - 55 ℃ to + 150 ℃; (10)Noise: < - 35 dB.

Features

VSSR1601222 features: (1)Lead (Pb)-free standard; (2)Reduces total assembly costs; (3)Compatible with automatic surface mounting equipment; (4)UL 94 V-0 flame resistant; (5)Thin Film Tantalum Nitride on silicon; (6)Choice of package sizes: VTSR (TSSOP) JEDEC MC-153, VSSR (SSOP or QSOP) JEDEC MS-137, VSOR (SOIC narrow) JEDEC MS-012; (7)Moisture sensitivity level 1 (per IPC/JEDEC STD-20C); (8)Isolated/Bussed/dDual terminator/Differential terminator circuits.

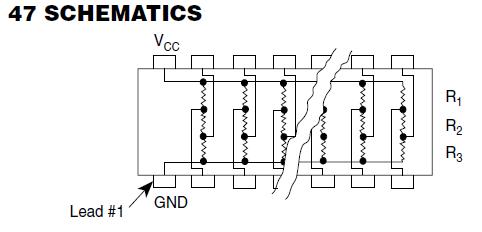

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VSSR1601222GTF
VSSR1601222GTF
Vishay/Thin Film
Resistor Networks & Arrays 2.2K 2% 16 PIN BUSS
Data Sheet
0-765: $1.30
765-2500: $0.58
2500-5000: $0.53
5000-7500: $0.52
VSSR1601222GUF
VSSR1601222GUF

RES ARRAY 2.2K OHM 15 RES LSSOP
Data Sheet
0-1: $1.23
1-25: $1.01
25-50: $0.95
50-100: $0.83
100-250: $0.71
250-500: $0.59
500-1000: $0.51
1000-2500: $0.50
2500-5000: $0.50
VSSR1601222JTF
VSSR1601222JTF
Vishay/Thin Film
Resistor Networks & Arrays 2.2K 5% 16 PIN BUSS QSOP
Data Sheet
0-430: $1.89
430-2500: $0.64
2500-5000: $0.63
5000-7500: $0.62
VSSR1601222JUF
VSSR1601222JUF

RES ARRAY 2.2K OHM 15 RES LSSOP
Data Sheet
0-1: $1.00
1-25: $0.83
25-50: $0.78
50-100: $0.68
100-250: $0.58
250-500: $0.49
500-1000: $0.42
1000-2500: $0.41
2500-5000: $0.41
