Product Summary

The VC080518A400R is a Multilayer Ceramic Transient Voltage Suppressor with unique high-energy multilayer construction represents state-of-the-art overvoltage circuit protection. The VC080518A400R is zinc oxide (ZnO) based ceramic semiconductor device with non-linear voltage-current characteristics (bi-directional) similar to back-to-back zener diodes. The VC080518A400R has the added advantage of greater current and energy handling capabilities as well as EMI/RFI attenuation.

Parametrics

VC080518A400R general specifications: (1)working voltage(DC):18.0V; (2)working voltage(AC):13.0V; (3)breakdown voltage:25.5V±10%; (4)clamping voltage:42V; (5)test current for Vc:1A; (6)maximum leakage current:10A; (7)transient energy rating:0.1; (8)peak current rating:30A; (9)typical cap:225; (10)frequency:K; (11)case size:0805.

Diagrams

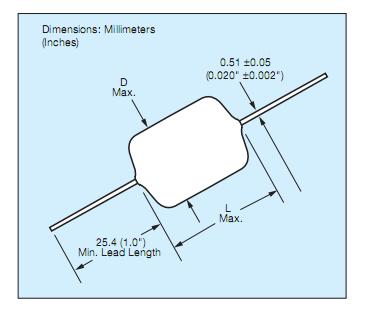

VC080518A400R package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

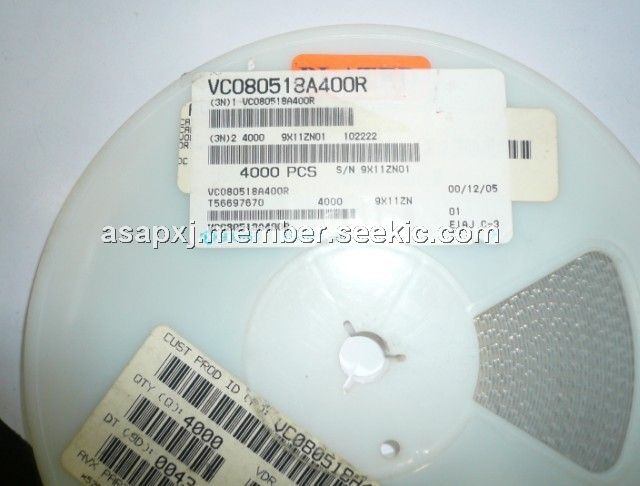

VC080518A400R
VC080518A400R
AVX
Varistors 18volts 0.1JOULES
Data Sheet
0-2900: $0.11
2900-4000: $0.10
4000-8000: $0.09
VC080518A400RP
VC080518A400RP
AVX
Varistors 18V 0.1J Energy x
Data Sheet
0-1: $0.23
1-50: $0.16
50-100: $0.14
100-500: $0.11
