The TX1263NLT is a Quad Port SMT Transformer/Choke Module.
Parametrics
TX1263NLT absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±2%): 1:2; (2)Line Side OCL (mH MIN): 1.2; (3)CW/W (pF MAX): 35; (4)Primary Pins: 1-2, 6-7, 11-12, 16-17.
Features
TX1263NLT features: (1)RoHS peak reflow temperature rating: 245℃; (2)Optimized for enhanced EMC performance; (3)Quad-port SMT package contains Transformers with optional Common Mode Chokes on both transmit and receive channels; (4)Extended temperature range; (5)Isolation Voltage: 1500 Vrms.

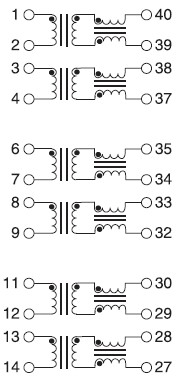

Diagrams
