Product Summary

The TX1188NLT is a Dual Surface Mount Transformer.

Parametrics

TX1188NLT absolute maximum ratings: (1)Turns Ratio (Pri:Sec ±5%): 1CT:2CT & 1CT:2CT; (2)OCL @ 25℃ (mH MIN): 1.20 & 1.20; (3)CW/W (pF MAX): 30 & 30; (4)LL (μH MAX): .80 & .80; (5)DCR Pri (Ω MAX): 0.70 & 0.70; (7)Package/ Schematic: BH/1; (7)Primary Pins: 1-3, 6-8.

Features

TX1188NLT features: (1)RoHS-6 peak reflow temperature rating: 245℃; (2)Dual SMT package contains transmit and receive transformers; (3)Models matched to leading transceiver ICs; (4)UL recognized (some parts pending approval).

Diagrams

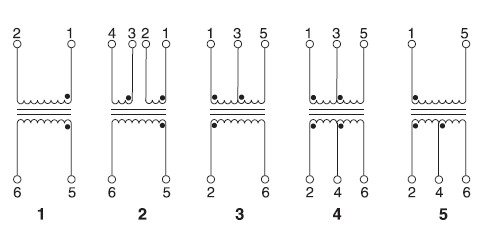

TX1188NLT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TX1188NLT
TX1188NLT
Pulse
Transformers Audio & Signal TRANSFORMER DUAL
Data Sheet
0-1: $2.79
1-10: $2.32
10-100: $2.06
100-500: $1.86
500-600: $1.86
