Product Summary

The TPS61050DRCR is a 1.2-A high power white LED driver 2-MHz synchronous boost converter with I2C compatible interface. The TPS61050DRCR is based on a high-frequency synchronous-boost topology with constant current sink to drive single white LEDs. The TPS61050DRCR uses an inductive fixed-frequency PWM control scheme using small external components, minimizing input ripple current. The 2-MHz switching frequency allows the use of small and low profile 2.2-mH inductors. To optimize overall efficiency, the TPS61050DRCR operates with only a 250 mV LED feedback voltage.

Parametrics

TPS61050DRCR absolute maximum ratings: (1)Voltage range on AVIN, VOUT, SW, LED: –0.3 V to 7 V; (2)Voltage range on SCL, SDA, FLASH_SYNC, GPIO, ENVM: –0.3 V to 7 V; (3)Input current on GPIO: 25 mA; (4)TA Operating ambient temperature range: –40℃ to 85℃; (5)TJ (MAX) Maximum operating junction temperature: 150℃; (6)Tstg Storage temperature range: –65℃ to 150℃; (7)ESD rating Human body model: 2 kV; (8)ESD rating Charge device model: 1 kV; (9)ESD rating Machine model: 200 V.

Features

TPS61050DRCR features: (1)Torch and Flash up to ILED = 1200 mA; (2)Voltage-Regulated Boost Converter: 4.5/5.0/5.25 V; (3)Shutdown: 0.3 μA (typ); (4)Total Solution Circuit Area < 25 mm2; (5)Up to 96% Efficiency; (6)I2C-Compatible Interface up to 400 kbps; (7)Integrated LED Turn-On Safety Timer; (8)Zero Latency TX-Masking Input; (9)Integrated ADC for LED VF Monitoring; (10)Integrated Low Light Dimming Mode; (11)LED Disconnect During Shutdown; (12)Open/Shorted LED Protection; (13)Over-Temperature Protection; (14)Available in a 12-Pin NanoFree (CSP) and 10-Pin QFN Packaging.

Diagrams

TPS61050DRCR circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

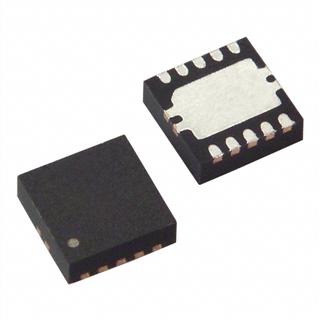

TPS61050DRCR
TPS61050DRCR

Texas Instruments

LED Lighting Drivers 1.2A High Pwr White

Data Sheet

0-2300: $0.74
2300-3000: $0.73
3000-6000: $0.71
TPS61050DRCRG4
TPS61050DRCRG4

Texas Instruments

LED Lighting Drivers 1.2A Hi Power White

Data Sheet

0-2300: $0.74
2300-3000: $0.73
3000-6000: $0.71
