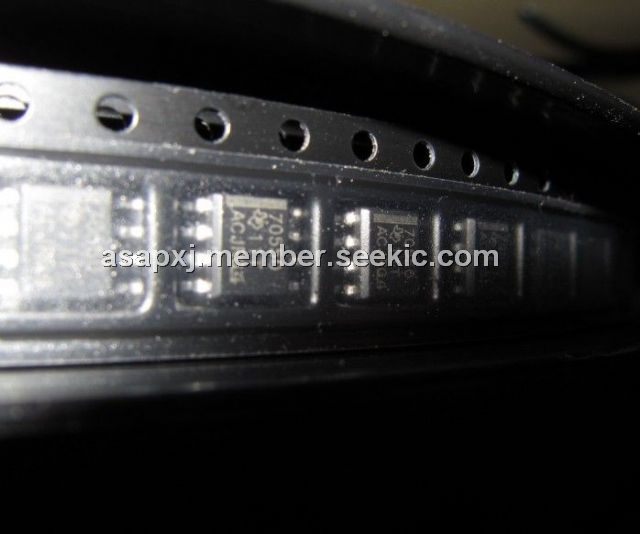

TPS3705-50DRG4

processor supervisory circuit, SOP-8, 2.5 V, 50 mA, TPS3705-50DRG4

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.76~0.78 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.76~0.78

PartNumber:: TPS3705-50DRG4

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella Wu's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-04

From Other Seller

Part Number:TPS3705-50DRG4
US $0.76 - 0.78
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT45DB161B-TI

US $0.90 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TPS3705-50DRG4 is a processor supervisory circuit with power-fail. It provides circuit initialization and timing supervision, primarily for DSP and processor-based systems. The TPS3705-50DRG4 has a watchdog timer that is periodically triggered by a positive or negative transition at WDI. When the supervising system fails to retrigger the watchdog circuit within the time-out interval, tt(out) = 1.6 s, WDO becomes active. The applications of the TPS3705-50DRG4 include: Designs Using DSPs, Microcontrollers or Microprocessors, Industrial Equipment, Programmable Controls, Automotive Systems, Portable/Battery Powered Equipment, Intelligent Instruments, Wireless Communication Systems, Notebook/Desktop Computers.

Parametrics

TPS3705-50DRG4 absolute maximum ratings: (1)Supply voltage, VDD: 7 V; (2)All other pins: –0.3 V to 7 V; (3)Maximum low output current, IOL: 5 mA; (4)Maximum high output current, IOH : –5 mA; (5)Input clamp current, IIK (VI < 0 or VI > VDD: ±20 mA; (6)Output clamp current, IOK (VO < 0 or VO > VDD): ±20 mA; (7)Operating free-air temperature range, TA: –40℃ to 85℃; (8)Storage temperature range, Tstg: –65℃ to 150℃; (9)Soldering temperature: 260℃.

Features

TPS3705-50DRG4 features: (1)Power-On Reset Generator with Fixed Delay Time of 200 ms, no External Capacitor Needed; (2)Precision Supply Voltage Monitor 2.5 V, 3 V, 3.3 V, and 5 V; (3)Pin-For-Pin Compatible with the MAX705 through MAX708 Series; (4)Integrated Watchdog Timer; (5)Voltage Monitor for Power-Fail or Low-Battery Warning; (6)Maximum Supply Current of 50 mA; (7)MSOP-8 and SO-8 Packages; (8)Temperature Range: –40℃ to 85℃.
